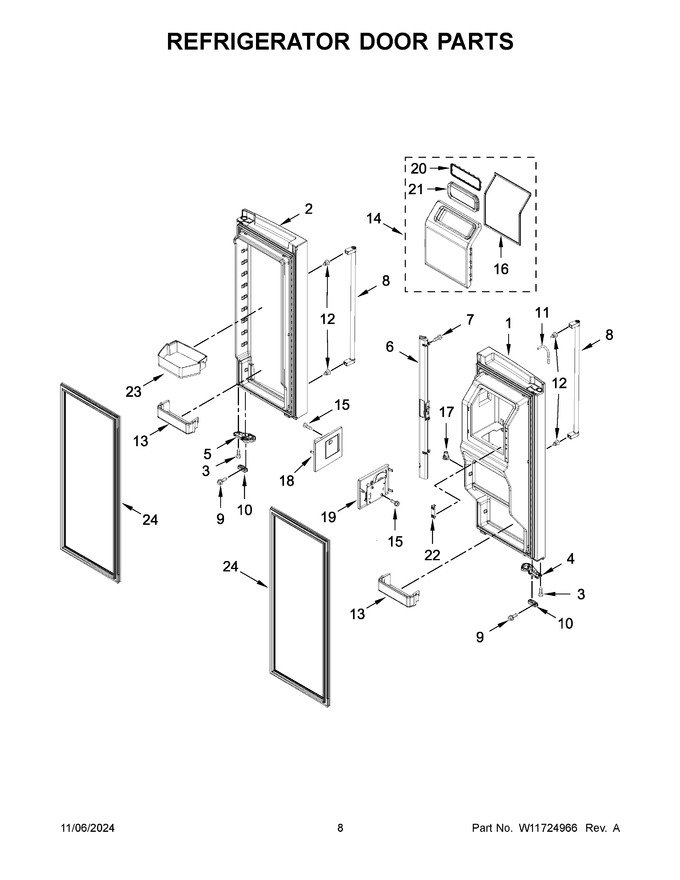

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681451 | Door, Refrigerator (includes Door Gasket) Left Hand (black Stainless) (Replaces: W11381839) |
|
Immediately | $ 1,138.50 | ||||
| 2 | W11681450 | Door, Refrigerator (includes Door Gasket) Right Hand (black Stainless) (Replaces: W11381837) |
|
$ 1,085.92 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 5 | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 | |||||
| 6 | W10907531 | Mullion, Door (black) (Replaces: W10902032) |
|
$ 154.43 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11339138) |
|
Immediately | $ 178.01 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W10394073 | Tube, Water |
|
$ 126.25 | |||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W11680598 | Trivet, 2 Liter (Replaces: W11373152) |
|
Immediately | $ 105.30 | ||||
| 14 | W11679939 | Door, Ice (Replaces: W11373132) |
|
$ 227.93 | |||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.79 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 51.72 | |||||
| 17 | W11315303 | Clip, Tube |
|
- | |||||
| 18 | W11748342 | Board And Cover Assembly, Emitter (Replaces: W11554029) |
|
- | |||||
| 19 | W11748343 | Board And Cover Assembly, Receiver (Replaces: W11554031) |
|
- | |||||
| 20 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 16.14 | |||||
| 21 | W11706282 | Gasket, Ice Chute (Replaces: W11689930) |
|
$ 127.45 | |||||
| 22 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 23.16 | ||||
| 23 | W11680597 | Bucket, Gallon (Replaces: W11373151) |
|
Immediately | $ 182.72 | ||||
| 24 | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 331.17 |
