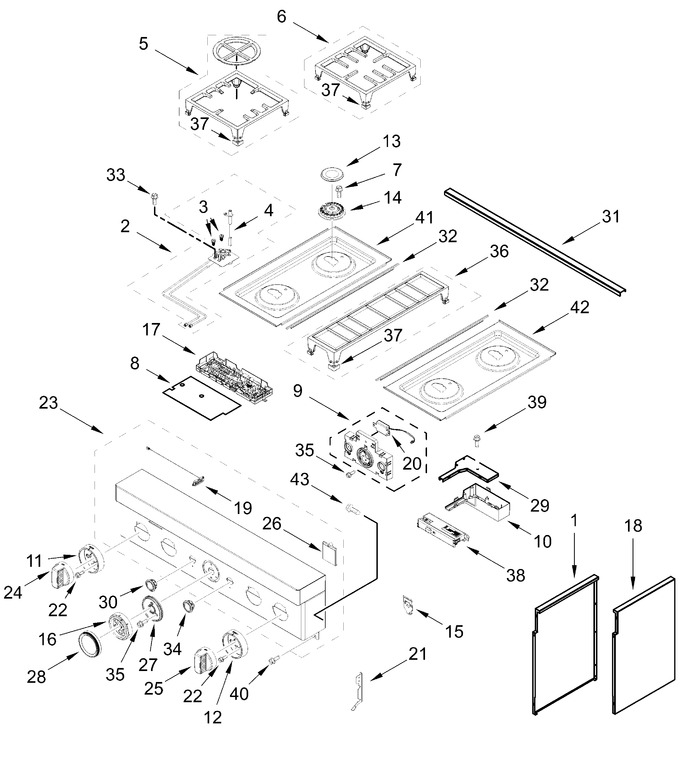

SELECT A DIAGRAM
Burner Box Parts
Chassis Parts
Cooktop, Burner And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11333179 | Panel, Cabinet Side (left) (Replaces: W11106881) |
|
$ 419.69 | |||||
| 2 | W11378584 | Orifice Holder Assembly (Replaces: W10892774) |
|
Immediately | $ 123.97 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11573760 | Igniter (Replaces: W11238757) |
|
Immediately | $ 23.48 | ||||
| 5 | W11380124 | Burner, Grate (with Wok Ring) (Replaces: W11291183) |
|
Immediately | $ 200.19 | ||||
| 6 | W11380128 | Burner, Grate (Replaces: W11291179) |
|
Immediately | $ 183.04 | ||||
| 7 | W11643628 | Screw (Replaces: W11323261) |
|
$ 14.75 | |||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11492296 | User Interface (Replaces: W11436334) |
|
$ 399.40 | |||||
| 10 | W11320411 | Cover, Wifi Outer (Replaces: W11205795) |
|
- | |||||
| 11 | W11380145 | Bezel (rear Burners) (Replaces: W10883433) |
|
$ 65.07 | |||||
| 12 | W11380146 | Bezel (front Burners) (Replaces: W10881642) |
|
$ 65.07 | |||||
| 13 | W11380174 | Cap, Burner (black, Set Of 4) (Replaces: W11121389) |
|
Immediately | $ 139.20 | ||||
| 14 | W11344539 | Spreader, Flame (Replaces: W10891746) |
|
Immediately | $ 141.16 | ||||
| 15 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 12.88 | |||||
| 16 | W11567541 | Knob, Oven Mode (stainless) (Replaces: W11500863) |
|
- | |||||
| 17 | W11380175 | Manager, Appliance (powermax) (Replaces: W11100279) |
|
Immediately | $ 470.41 | ||||
| 18 | W11333303 | Panel, Cabinet Side (right) (Replaces: W11106880) |
|
$ 421.41 | |||||
| 19 | W11318855 | Antenna, Wifi (Replaces: W11130078) |
|
$ 228.92 | |||||
| 20 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 80.93 | |||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 23 | W11728199 | Console Panel (Replaces: W11700784) |
|
- | |||||
| 24 | W11380561 | Knob, Single (stainless) (Replaces: W10912166) |
|
Immediately | $ 81.20 | ||||
| 25 | W11380562 | Knob, Dual (stainless) (Replaces: W10883172) |
|
$ 79.24 | |||||
| 26 | W10896366 | Light Pipe Assembly |
|
$ 108.38 | |||||
| 27 | W11548484 | Bezel, Oven (stainless) (Replaces: W11500871) |
|
$ 61.19 | |||||
| 28 | W11548477 | Knob, Oven Temperature (stainless) (Replaces: W11500868) |
|
$ 149.89 | |||||
| 29 | W11320410 | Cover, Wifi Inner (Replaces: W11205794) |
|
- | |||||
| 30 | W11241511 | Button Assembly, Oven Light |
|
Immediately | $ 46.19 | ||||
| 31 | W11156414 | Trim, Island |
|
$ 260.38 | |||||
| 32 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 33 | 7101P42660 | Screw |
|
- | |||||
| 34 | W11241510 | Button Assembly, Oven Start |
|
Immediately | $ 48.76 | ||||
| 35 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 36 | W11380566 | Kit, Grate Filler (Replaces: W11291178) |
|
$ 257.46 | |||||
| 37 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 38 | W11234290 | Wifi Module Assembly (Replaces: W11110768) |
|
$ 179.89 | |||||
| 39 | 7101P62460 | Screw |
|
- | |||||
| 40 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 41 | W11344755 | Panel, Left Cooktop (black) (Replaces: W11038235) |
|
$ 199.76 | |||||
| 42 | W11380180 | Panel, Right Cooktop (black) (Replaces: W11038245) |
|
$ 491.89 | |||||
| 43 | 3196265 | Screw (Replaces: 3400099) |
|
- | |||||
| W11344746 | Spreader, Flame (Replaces: W10891978) |
|
Immediately | $ 133.20 | |||||
| W11378586 | Orifice Holder Assembly (Replaces: W10892479) |
|
Immediately | $ 119.66 | |||||
| W11114379 | Igniter |
|
Immediately | $ 66.44 | |||||
| W11678580 | Screw (Replaces: W11323309) |
|
$ 14.78 | ||||||
| W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | ||||||
| W11344742 | Spreader, Flame (Replaces: W10891974) |
|
Immediately | $ 134.12 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11378585 | Orifice Holder Assembly (Replaces: W10892484) |
|
$ 123.22 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11378587 | Orifice Holder Assembly (Replaces: W10892735) |
|
$ 123.38 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11672510 | Orifice, Main (15k) (Replaces: W10892419) |
|
Immediately | $ 107.87 | |||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 74.14 | |||||
| W10892438 | Orifice, Simmer (5k) |
|
$ 99.86 | ||||||
| W11628654 | Igniter (Replaces: W10892340) |
|
Immediately | $ 54.92 |
