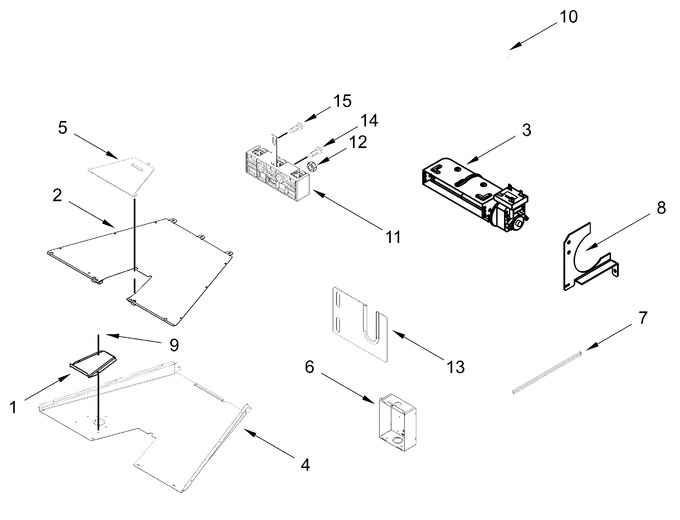

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Burner Box Parts
Chassis Parts
Cooktop, Burner And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10818234 | Slope, Exhaust Vent (30 In) |
|
- | |||||
| 2 | W11320402 | Vent, Cooling Top (30 In) (Replaces: W11105223) |
|
$ 139.98 | |||||
| 3 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 4 | W11320403 | Vent, Cooling Bottom (30 In) (Replaces: W11105222) |
|
- | |||||
| 5 | W11320405 | Plate, Cooling Latch (Replaces: W11109518) |
|
- | |||||
| 6 | W11353392 | Box, Terminal |
|
- | |||||
| 7 | W11175143 | Gasket (Replaces: W10919715) |
|
Immediately | $ 24.62 | ||||
| 8 | W11047754 | Bracket, Blower Mount |
|
- | |||||
| 9 | W10270397 | Seal, Vent Slope (30 In) |
|
- | |||||
| 10 | W10270396 | Seal, Chimney |
|
- | |||||
| 11 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 12 | WP112432 | Nut, Hex (Replaces: 112432) |
|
$ 8.63 | |||||
| 13 | W11320407 | Cover, Channel (Replaces: W11106956) |
|
- | |||||
| 14 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 7.30 | |||||
| 15 | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 |
