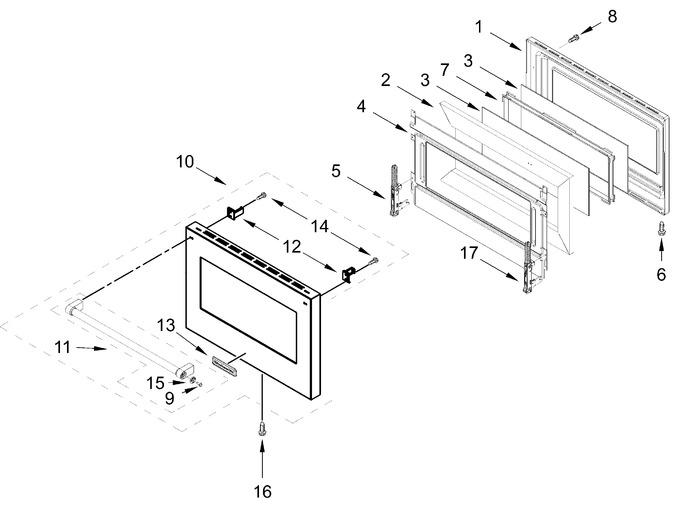

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 430.01 | ||||
| 2 | W11688537 | Insulation, Door (30 In) (Replaces: W11413190) |
|
$ 125.80 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 175.72 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 184.62 | ||||
| 5 | W11643630 | Hinge, Door (left) (Replaces: W11390105) |
|
Immediately | $ 195.56 | ||||
| 6 | W11193480 | Screw (Replaces: W10607120) |
|
$ 14.72 | |||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 14.77 | ||||
| 9 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 10 | W11733865 | Outer Door Assembly (includes Handle) (Replaces: W11712129) |
|
- | |||||
| 11 | W11512751 | Handle Assembly (Replaces: W11362706) |
|
- | |||||
| 12 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 78.81 | |||||
| 13 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 14 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 7.30 | |||||
| 15 | W11361074 | Medallion, Handle |
|
- | |||||
| 16 | W10162096 | Screw |
|
$ 21.90 | |||||
| 17 | W11643898 | Hinge, Door (right) (Replaces: W11390124) |
|
Immediately | $ 142.45 |
