Burner Box Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts

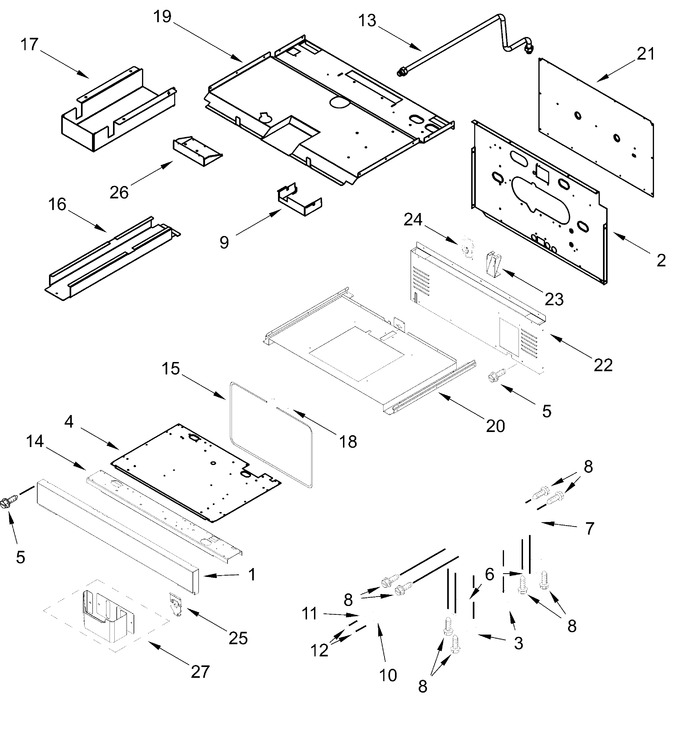

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11731972		Kickplate   (Replaces: W11697029)		Appelez-nous	-
2	W11324989		Back, Chassis		Appelez-nous	-
3	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
4	W11109583		Duct, Bottom (30 In)		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	W11369237		Cabinet, Appliance Manager				$ 89.38
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11320154		Tube, Pressure Regulator   (Replaces: W11106963)				$ 185.91
14	W11087491		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Cavity (30 In)   (Replaces: W11115328)			Immediately	$ 74.56
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W11368831		Channel, Wire		Appelez-nous	-
18	W11362015		Retainer, Gasket (9 In)				$ 158.18
19	W11324986		Top, Chassis		Appelez-nous	-
20	W11040802		Bottom, Chassis		Appelez-nous	-
21	W11103334		Panel, Back Top		Appelez-nous	-
22	W11034134		Panel, Back Bottom		Appelez-nous	-
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
25	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	W11199181		Cover, Foot (left)			Immediately	$ 91.95
	W11199178		Cover, Foot (right)				$ 90.96
