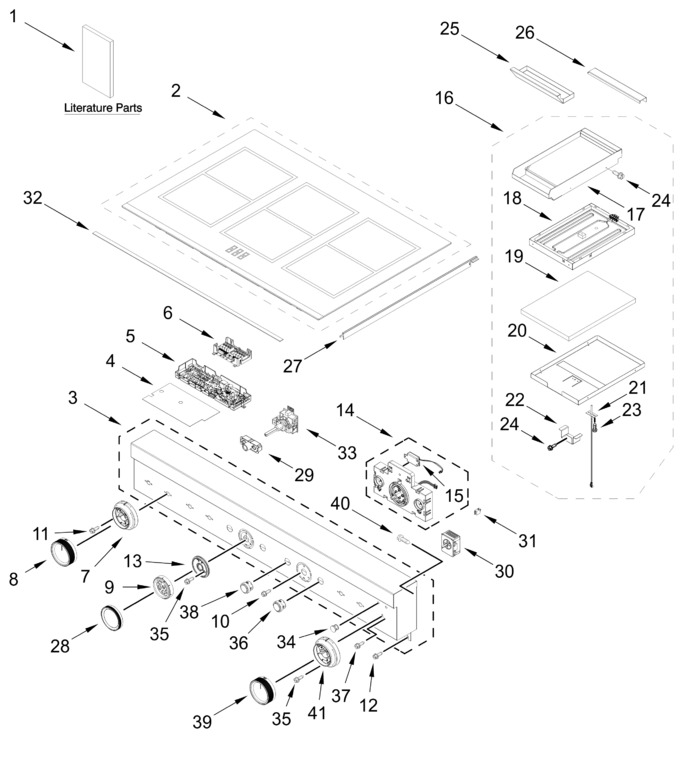

SELECT A DIAGRAM

Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11796138		Glass Cooktop Assembly   (Replaces: W11750847)		Appelez-nous	-
3	W11790582		Console Panel   (Replaces: W11774866)		Appelez-nous	-
4	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
5	W11789789		Manager, Powermax Appliance   (Replaces: W11767301)		Appelez-nous	-
6	W11766925		Manager, Appliance (expansion)   (Replaces: W11740607)		Appelez-nous	-
7	W11790528		Bezel, Induction (stainless)   (Replaces: W11748798)		Appelez-nous	-
8	W11790529		Knob, Induction (stainless)   (Replaces: W11731287)		Appelez-nous	-
9	W11789785		Knob, Oven Mode (stainless)   (Replaces: W11738550)		Appelez-nous	-
10	W10674068		Screw				$ 24.39
11	W11765213		Screw   (Replaces: W11736176)				$ 29.86
12	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
13	W11788782		Bezel Assembly, Oven (stainless)   (Replaces: W11738551)		Appelez-nous	-
14	W11789784		Interface, User   (Replaces: W11767393)		Appelez-nous	-
15	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
16	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,547.02
17	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
22	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
24	W10162096		Screw				$ 21.90
25	W10276497		Tray, Griddle Drip				$ 404.03
26	W11766929		Trim, Rear Griddle   (Replaces: W11696498)		Appelez-nous	-
27	W11766927		Trim, L-strip   (Replaces: W11690715)		Appelez-nous	-
28	W11788784		Knob, Oven Temperature (stainless)   (Replaces: W11740403)				$ 61.29
29	W11766154		Sleeve, Bezel   (Replaces: W11697214)		Appelez-nous	-
30	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
31	W10116114		Light, Indicator Housing			Immediately	$ 93.57
32	W11766930		Gasket, Console   (Replaces: W11697609)		Appelez-nous	-
33	W11765221		Switch, Infinite   (Replaces: W11704441)			Immediately	$ 67.10
34	W10294500		Lens, Indicator Light				$ 7.69
35	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	7101P30960		Screw		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11789790		Knob, Griddle (stainless)   (Replaces: W11732238)		Appelez-nous	-
40	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
41	W11789788		Bezel, Griddle (stainless)   (Replaces: W11741956)		Appelez-nous	-
	W11765166		Harness, User Interface Display   (Replaces: W11705029)		Appelez-nous	-
	W11776323		Wiring Diagram (oven)		Appelez-nous	-
	W11766172		Line Filter   (Replaces: W11733662)			Immediately	$ 182.07
	W11779946		Installation Instructions, Oven Door		Appelez-nous	-
	W11790588		Harness, Communication   (Replaces: W11766036)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	W11790584		Harness, Main (30 In)   (Replaces: W11745818)		Appelez-nous	-
	W11790587		Harness, Main (18 In)   (Replaces: W11745819)		Appelez-nous	-
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11776465		Wiring Diagram (induction Cooktop)		Appelez-nous	-
	W11767760		Owners Manual		Appelez-nous	-
	W11767729		Quick Start Guide		Appelez-nous	-
	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11766934		Harness, Console   (Replaces: W11702348)		Appelez-nous	-
