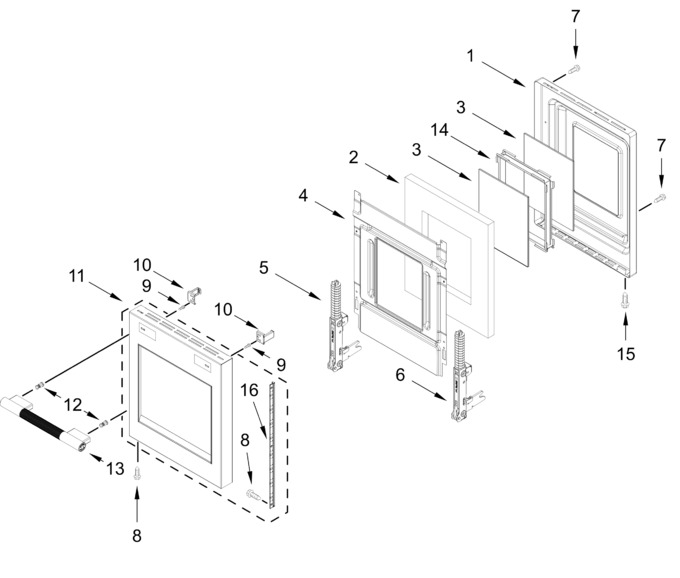

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318335		Liner, Door   (Replaces: W11036770)				$ 394.33
2	W11317950		Insulation, Door   (Replaces: W10884821)		Appelez-nous	-
3	W11317951		Glass, Inner   (Replaces: W11036789)			Immediately	$ 167.81
4	W11318328		Retainer, Glass   (Replaces: W11194818)				$ 182.64
5	W11643896		Hinge, Door (left)   (Replaces: W11390106)			Immediately	$ 207.50
6	W11643900		Hinge, Door (right)   (Replaces: W11390125)			Immediately	$ 144.95
7	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
8	W10162096		Screw				$ 21.90
9	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
10	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
11	W11795856		Outer Door Assembly (stainless)   (Replaces: W11753576)		Appelez-nous	-
12	W11773159		Stud   (Replaces: W11687274)				$ 29.86
13	W11789808		Handle Assembly (stainless)   (Replaces: W11732568)		Appelez-nous	-
14	W11794767		Frame, Glass   (Replaces: W11194812)		Appelez-nous	-
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
16	W11765964		Trim, Door Side   (Replaces: W11714784)		Appelez-nous	-
