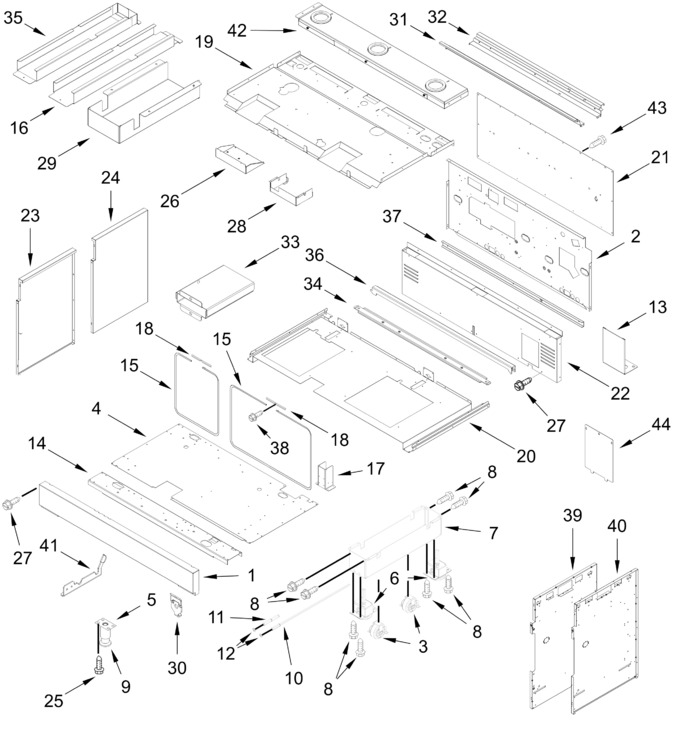

Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11789804		Kickplate   (Replaces: W11739035)				$ 485.88
2	W11766939		Back, Chassis   (Replaces: W11758514)		Appelez-nous	-
3	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
4	W11320536		Duct, Bottom (48 In)   (Replaces: W11110260)		Appelez-nous	-
5	WP9759118		Plate, Mounting   (Replaces: 9759118)				$ 154.94
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11765962		Bracket, Rear Chassis   (Replaces: W11758326)		Appelez-nous	-
14	W11369238		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Cavity (30 In)   (Replaces: W11115328)			Immediately	$ 74.56
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W11362015		Retainer, Gasket (9 In)				$ 158.18
19	W11388055		Top, Chassis   (Replaces: W11324984)		Appelez-nous	-
20	W11320545		Chassis, Bottom   (Replaces: W11040800)		Appelez-nous	-
21	W11766940		Panel, Back Top   (Replaces: W11712452)		Appelez-nous	-
22	W11789805		Panel, Back Bottom   (Replaces: W11780250)		Appelez-nous	-
23	W11765277		Panel, Cabinet Side (left)   (Replaces: W11707979)		Appelez-nous	-
24	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
25	3400518		Screw				$ 13.63
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	W11369237		Cabinet, Appliance Manager				$ 89.38
29	W11368831		Channel, Wire		Appelez-nous	-
30	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
31	W11766942		Bracket, Front   (Replaces: W11695261)		Appelez-nous	-
32	W11766943		Bracket, Rear   (Replaces: W11695262)		Appelez-nous	-
33	W11765960		Duct, Extension   (Replaces: W11695808)		Appelez-nous	-
34	W11766944		Support, Side Duct   (Replaces: W11695821)		Appelez-nous	-
35	W11765275		Duct-chassis, Rear   (Replaces: W11695987)		Appelez-nous	-
36	W11766946		Rail, Side Trim   (Replaces: W11701738)		Appelez-nous	-
37	W11766948		Bracket, Front Chassis Support   (Replaces: W11747103)		Appelez-nous	-
38	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
39	W11750310		Retainer, Left Side Chassis   (Replaces: W11683297)		Appelez-nous	-
40	W11750312		Retainer, Right Side Chassis   (Replaces: W11683296)		Appelez-nous	-
41	W10130760		Bracket, Moving Console (left)				$ 75.94
42	W11766941		Duct, Top   (Replaces: W11695197)		Appelez-nous	-
43	7101P33860		Screw		Appelez-nous	-
44	W10115843		Cover, Ignition		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11368870		Retainer, Gasket (12 In)   (Replaces: W10157511)				$ 24.91
	ARI2D66E63C83670445E5F5CD521AFBF6F9		(left Rear, Center Rear)		Appelez-nous	-
	W11115326		Gasket, Cavity (18 In)			Immediately	$ 201.26
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
