Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

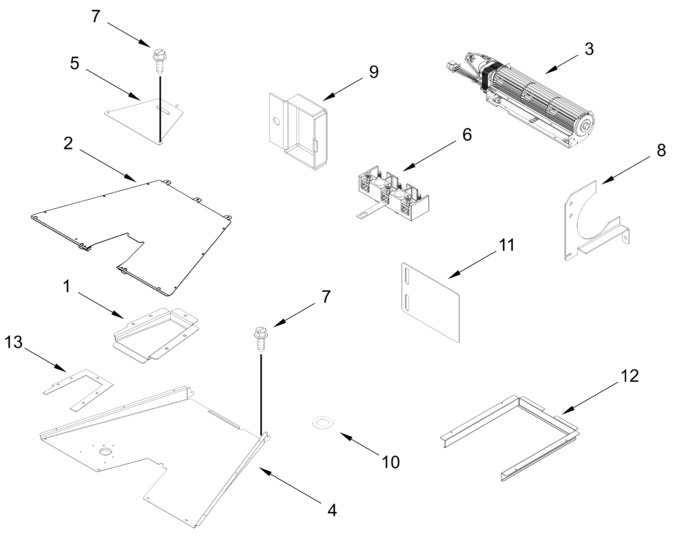

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30 In)		Appelez-nous	-
2	W11320402		Vent, Cooling Top (30 In)   (Replaces: W11105223)				$ 139.98
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 241.54
4	W11320403		Vent, Cooling Bottom (30 In)   (Replaces: W11105222)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
7	7101P42660		Screw		Appelez-nous	-
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
10	W10270396		Seal, Chimney		Appelez-nous	-
11	W11765963		Cover, Channel   (Replaces: W11738747)		Appelez-nous	-
12	W10145363		Duct, Primary Air (30 In)		Appelez-nous	-
13	W10270397		Seal, Vent Slope (30 In)		Appelez-nous	-
	W11320597		Vent, Cooling Top (18 In)   (Replaces: W11113380)		Appelez-nous	-
	W10145364		Duct, Primary Air (18 In)		Appelez-nous	-
	W10270402		Seal, Vent Slope (18 In)		Appelez-nous	-
	W10818235		Slope, Exhaust Vent (18 In)		Appelez-nous	-
	W11320598		Vent, Cooling Bottom (18 In)   (Replaces: W11113378)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
