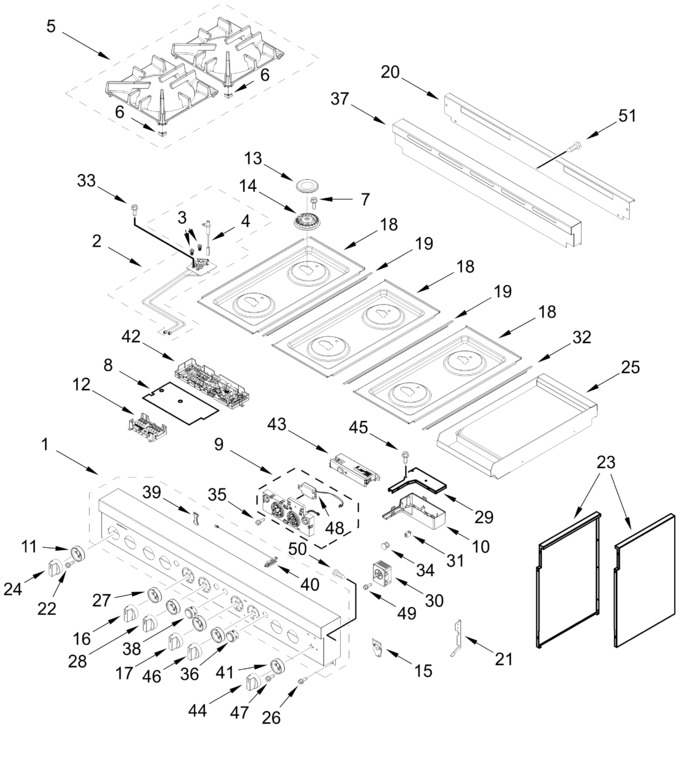

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11289593		Control Panel   (Replaces: W10878256)				$ 891.92
2	W11319741		Orifice Holder Assembly   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492275		Interface, User   (Replaces: W11436326)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 451.62
13	W11319224		Cap, Burner (black, Set Of 6)   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11591511		Knob, Oven Mode (stainless)   (Replaces: W11496095)				$ 113.64
17	W11574370		Knob, Oven Mode (stainless)   (Replaces: W11496094)				$ 93.11
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
19	W10271524		Trim, T-strip (black)				$ 212.34
20	W10323252		Trim, Island Insert				$ 207.83
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
24	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 52.49
25	ARI4865CFF8563D5F77A3C528079CFC39A7		Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page)		Appelez-nous	-
26	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
28	W11620695		Knob, Oven Temperature (stainless)   (Replaces: W11496096)		Appelez-nous	-
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
31	W10116114		Light, Indicator Housing			Immediately	$ 93.57
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W10294500		Lens, Indicator Light				$ 7.69
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11516014		Island Trim   (Replaces: W11476244)				$ 443.60
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11317495		Bezel, Griddle (brass)   (Replaces: W11104966)				$ 55.28
42	W11620696		Manager, Powermax Appliance   (Replaces: W11543349)				$ 474.72
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	W11620693		Knob, Griddle (stainless)   (Replaces: W11496089)		Appelez-nous	-
45	7101P62460		Screw		Appelez-nous	-
46	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
47	W10674068		Screw				$ 24.39
48	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
49	7101P30960		Screw		Appelez-nous	-
50	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
51	7101P33860		Screw		Appelez-nous	-
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	ARI5845850909E820290830A3E3A44CF77F		(left Front, Left Rear, Right Center Front)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	W11319743		Orifice Holder Assembly   (Replaces: W10892505)				$ 125.13
	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
	W11319746		Orifice Holder Assembly   (Replaces: W10892495)				$ 123.91
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	ARI822F6B264BB7DC41A7FB4C11C9B4EEB3		(left Front, Left Center Front, Right Center Front)		Appelez-nous	-
	ARI770C969C5EB58E8C87C00F5B072F653D		(left Rear And Right Center Rear)		Appelez-nous	-
	ARI853D74B62D6355F5A369BA19932DE009		(all But Left Center Rear)		Appelez-nous	-
	W11620694		Orifice Holder Assembly   (Replaces: W11505829)		Appelez-nous	-
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11580024		Igniter   (Replaces: W11238758)			Immediately	$ 23.66
	W11238756		Igniter			Immediately	$ 67.96
	W11316701		Panel, Center Cooktop   (Replaces: W11038241)				$ 502.01
	W11316702		Panel, Center Cooktop   (Replaces: W11038249)		Appelez-nous	-
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	W11319740		Orifice Holder Assembly   (Replaces: W10892810)				$ 122.67
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W11319747		Orifice Holder Assembly   (Replaces: W10892444)		Appelez-nous	-
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	ARI5EB7AAED92D9FC182D9A31E6CE33E432		(left Center Front, Right Center Rear)		Appelez-nous	-
	ARIE201EE7BE318B20F5A8E22F5F2B645F9		(for 18 In Oven)		Appelez-nous	-
	ARI1E01456C21FFBF0D8455E89259237D34		(for 30 In Oven)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	ARI1FACBFA861FECD9D124A08E1EC1C51C5		(for 4 Oven Knobs)		Appelez-nous	-
