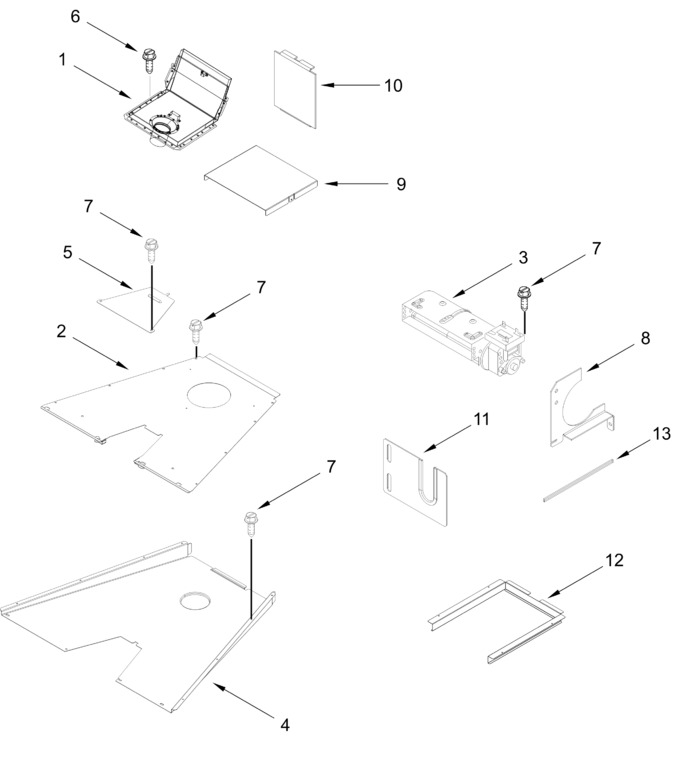

Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10340579		Vent, Chimney Box (30 In / 36 In)		Appelez-nous	-
2	W11105221		Vent, Cooling Top (30 In)		Appelez-nous	-
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 241.54
4	W11091676		Vent, Cooling Bottom (30 In)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
7	7101P42660		Screw		Appelez-nous	-
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10246086		Retainer, Insulation		Appelez-nous	-
10	W10246087		Insulation, Chimney		Appelez-nous	-
11	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
12	W10145363		Duct, Primary Air (30 In)		Appelez-nous	-
13	W11175143		Gasket   (Replaces: W10919715)			Immediately	$ 24.62
	W11113379		Vent, Cooling Top (18 In)		Appelez-nous	-
	W11113377		Vent, Cooling Bottom (18 In)		Appelez-nous	-
	W10145364		Duct, Primary Air (18 In)		Appelez-nous	-
	W11476247		Vent, Chimney Box (18 In)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
