SELECT A DIAGRAM

Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner, And Griddle Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

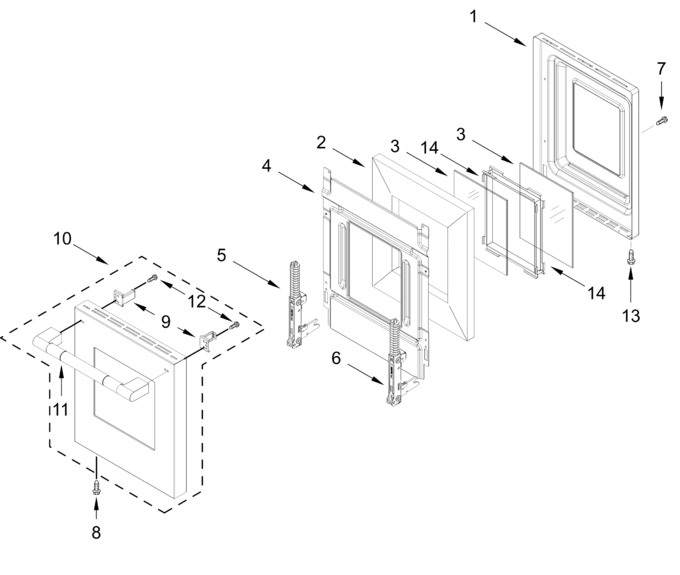

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318335		Liner, Door   (Replaces: W11036770)				$ 394.33
2	W11317950		Insulation, Door   (Replaces: W10884821)		Appelez-nous	-
3	W11317951		Glass, Inner   (Replaces: W11036789)			Immediately	$ 167.81
4	W11318328		Retainer, Glass   (Replaces: W11194818)				$ 182.64
5	W11643896		Hinge, Door (left)   (Replaces: W11390106)			Immediately	$ 207.50
6	W11643900		Hinge, Door (right)   (Replaces: W11390125)			Immediately	$ 144.95
7	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
8	W10162096		Screw				$ 21.90
9	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
10	W11315559		Assembly, Outer Door Glass (includes Handle)   (Replaces: W10799306)				$ 936.68
11	W11317517		Handle, Door   (Replaces: W11102824)		Appelez-nous	-
12	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
13	W11193480		Screw   (Replaces: W10607120)				$ 14.72
14	W11794767		Frame, Glass   (Replaces: W11194812)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
