Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11688507 Insulation, Convection Cover   (Replaces: W10282821) In-Stock Immediately $ 27.10

2 W10308051 Box, Broil Appelez-nous -
3 W11111351 Rack, Oven (18 In) Special Order $ 161.52

4 W10794440 Motor, Convection   (Replaces: W10631506) In-Stock Immediately $ 332.30

5 W11320150 Blade, Fan   (Replaces: W11108376) Special Order $ 342.64

6 W11368180 Cover, Fan Appelez-nous -
7 W10794042 Nut, Acorn (left Hand Thread)   (Replaces: W10631504) Special Order $ 13.14

8 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

9 7101P43460 Screw Appelez-nous -
10 W11355922 Electrode, Bake   (Replaces: W11205400) In-Stock Immediately $ 70.19

11 WP9755546 Nut, Hidden   (Replaces: 9755546) Special Order $ 7.30

12 W10850807 Screw   (Replaces: W10720084) Special Order $ 7.77

13 W10261523 Plate, Fan Special Order $ 77.85

14 W10739592 Screw Appelez-nous -
15 8186589 Jack, Meat Probe   (Replaces: 9755543) In-Stock Immediately $ 108.02


    View Diagram in Separate Window     Print Icon   Print Part List

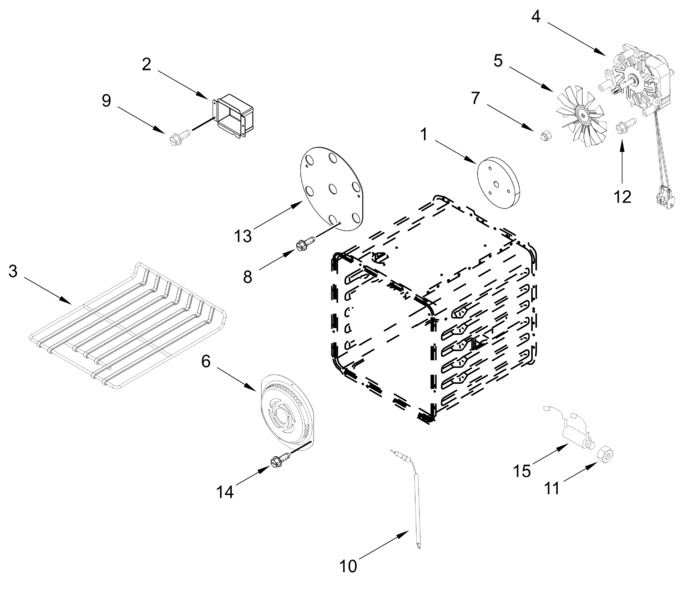

Diagram for JGRP548HL07
