SELECT A DIAGRAM

Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts (not Included)


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

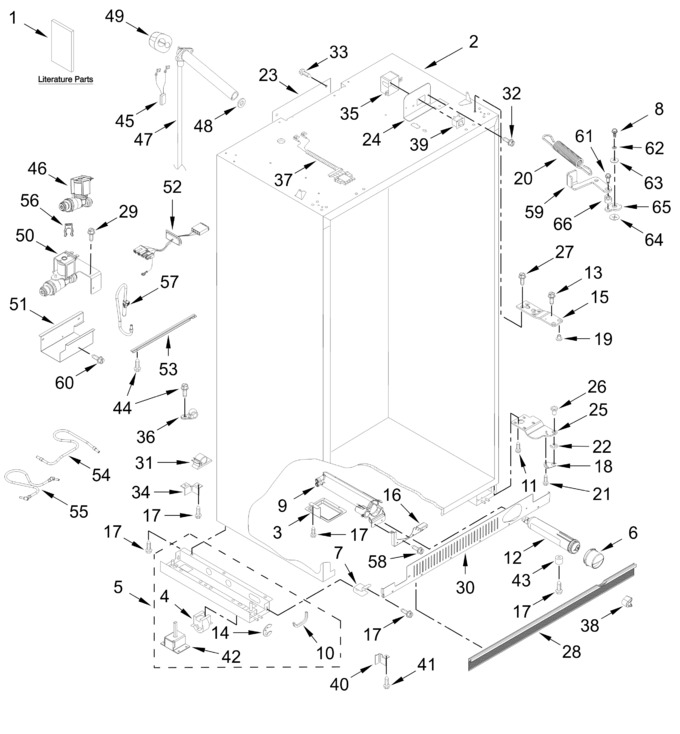

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W11354227		Screw   (Replaces: W10761279)				$ 14.77
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	W10754687		Filter, Water		Appelez-nous	-
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
14	2006841		Ring, Retainer				$ 92.66
15	2252291		Hinge, Top (left Hand)				$ 79.35
16	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11610480		Bracket, Switch (left Hand)				$ 76.49
25	2309472		Hinge, Bottom (freezer Side)		Appelez-nous	-
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 14.78
28	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 249.29
29	00487294		Screw   (Replaces: 487294)				$ 175.09
30	W11739148		Grille, Bottom (black)   (Replaces: W11695788)				$ 214.59
31	W10663352		Clip				$ 21.91
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11695310)		Appelez-nous	-
36	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
37	W10780213		Wire Assembly, Switch				$ 130.91
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11396033		Switch, Rocker   (Replaces: W10847848)			Immediately	$ 37.30
40	2006616		Bracket, Support Base (left Hand, Front)				$ 91.53
41	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
42	2005032		Leveler, Adjustable			Immediately	$ 200.07
43	2005433		Spacer, Door Skin (top)				$ 23.33
44	W11624204		Screw   (Replaces: 486194)				$ 14.72
45	W11623284		Heater, Fill Tube   (Replaces: W11489776)		Appelez-nous	-
46	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
47	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
48	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
49	W11490590		Cover, Fill Tube		Appelez-nous	-
50	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 120.60
51	W10619291		Shield, Valve Electrical		Appelez-nous	-
52	W11479397		Wire Assembly, Water Valve				$ 78.74
53	2320559		Support, Valve				$ 88.79
54	W10619899		Tube, Filter Inlet				$ 46.24
55	W10635851		Tube, Filter Outlet				$ 88.57
56	W10782423		Locking Ring (1/4")				$ 24.37
57	W11690636		Waterline, Cust Connect   (Replaces: W10577944)				$ 130.54
58	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
59	W11416733		Arm, Door Closer Extension (left Hand)   (Replaces: 2267193)				$ 80.42
60	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
61	W11177574		Screw   (Replaces: W10485630)				$ 14.84
62	WP8533914		Washer, Lock   (Replaces: 8533914)			Immediately	$ 4.72
63	W11089212		Washer   (Replaces: 3392186)				$ 11.06
64	W11171640		Cover, Hinge Pin   (Replaces: W11103275)			Immediately	$ 32.63
65	WP2320509		Stop, Door   (Replaces: 2320509)				$ 29.95
66	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
	W10782424		Locking Ring(5/16")		Appelez-nous	-
	W11494194		Tech Sheet		Appelez-nous	-
	W11418227		Arm, Door Closer Extension (right Hand)   (Replaces: 2267192)				$ 119.09
	2252292		Hinge, Top (right Hand)				$ 88.79
	W11648179		Energy Guide		Appelez-nous	-
	ARIC467EA2065EBD6EE51D04A55E53CAB77		(refrigerator)		Appelez-nous	-
	W11610479		Bracket, Switch (right Hand)		Appelez-nous	-
	W11504344		Owner's Manual		Appelez-nous	-
	2006556		Bracket, Support Base (right Hand, Front)				$ 37.20
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
	2309471		Hinge, Bottom (refrigerator Side)				$ 129.90
	ARI744A39619562C01DE39E694D1CE8F7D9		(freezer)		Appelez-nous	-
