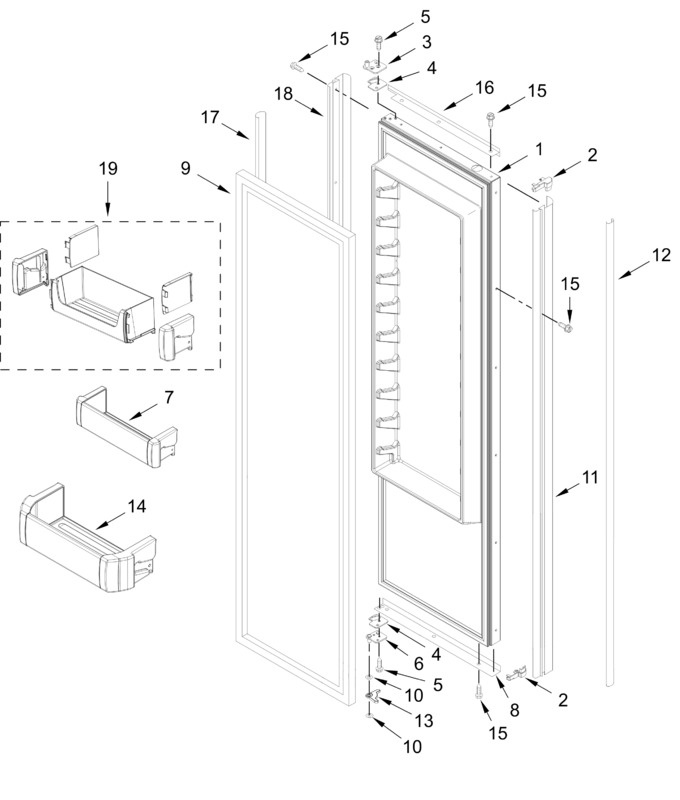

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633394		Door, Refrigerator   (Replaces: W11576687)			Immediately	$ 1,532.53
2	2207457		Trim, Corner				$ 57.12
3	W10484480		Hinge Assembly, Top				$ 64.04
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	W11627398		Bin, Shallow Door   (Replaces: W11408938)				$ 184.01
8	2309493S		Trim, Bottom Door (aluminum)		Appelez-nous	-
9	W11625077		Gasket, Door (grey)   (Replaces: W10760886)				$ 385.91
10	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
11	2309497S		Trim, Door (aluminum, Handle Side)				$ 323.02
12	2314003S		Cover, Trim (aluminum, Handle Side)				$ 174.63
13	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
14	W11627397		Bin, Gallon Door   (Replaces: W11408930)				$ 185.59
15	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
16	2309487S		Trim, Top Door (aluminum)				$ 236.28
17	2259448S		Trim, Cover (aluminum, Hinge Side)				$ 179.50
18	2309498S		Trim, Door (aluminum, Hinge Side)				$ 324.38
19	W11627396		Bin Assembly, Top Door   (Replaces: W11610618)				$ 185.14
