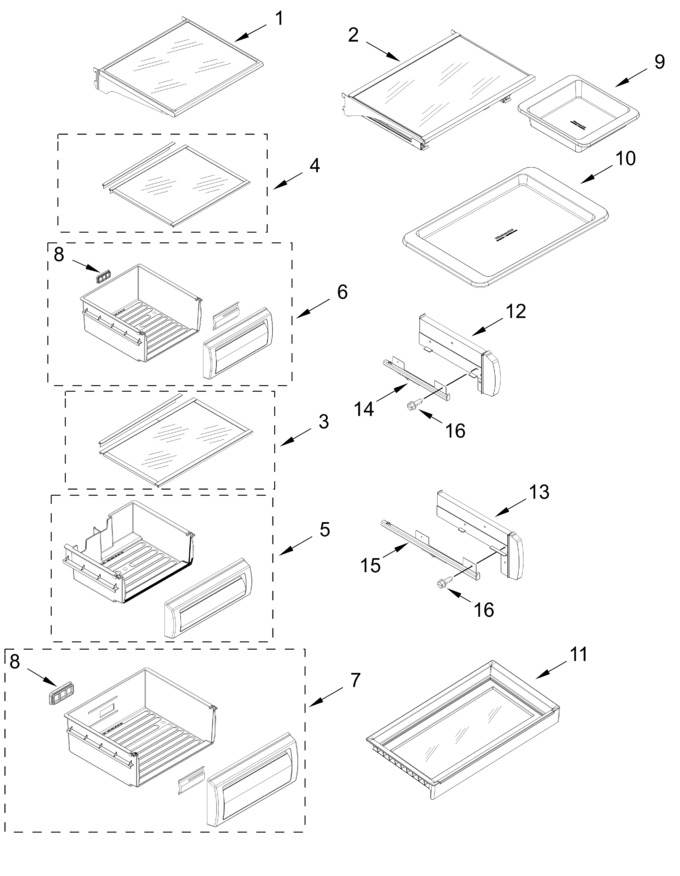

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11626834		Shelf Assembly, Fixed   (Replaces: W11410511)				$ 222.96
2	W11631295		Shelf Assembly, Bakeware   (Replaces: W11408073)				$ 339.54
3	W11626829		Pan Cover Assembly, Meat   (Replaces: W11441725)				$ 342.79
4	W11626773		Pan Cover Assembly, Crisper   (Replaces: W11441727)				$ 351.93
5	W11626833		Pan Assembly, Meat   (Replaces: W11448428)				$ 341.49
6	W11755559		Pan Assembly, Crisper   (Replaces: W11740833)		Appelez-nous	-
7	W11755558		Pan, Cool Control Crisper   (Replaces: W11740829)		Appelez-nous	-
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11633366		Pan, Cake   (Replaces: W11522384)				$ 72.22
10	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 70.51
11	W11631294		Shelf Assembly, Platter   (Replaces: W11611417)				$ 488.62
12	W11410122		Spacer, Crisper Pan (left Hand)		Appelez-nous	-
13	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
14	2302956		Slide, Crisper Pan (left Hand)				$ 298.73
15	2302954		Slide, Meat Pan (left Hand)				$ 343.49
16	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
	ARI918EA51C669253CD37B34596C035B44C		Left Hand		Appelez-nous	-
	2302955		Slide, Meat Pan (right Hand)				$ 343.18
	2302957		Slide, Crisper Pan (right Hand)				$ 228.33
	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
	W11410123		Spacer, Crisper Pan (right Hand)		Appelez-nous	-
	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
	ARIC236D3C59A55E01B8A89A671E948FF57		Right Hand		Appelez-nous	-
