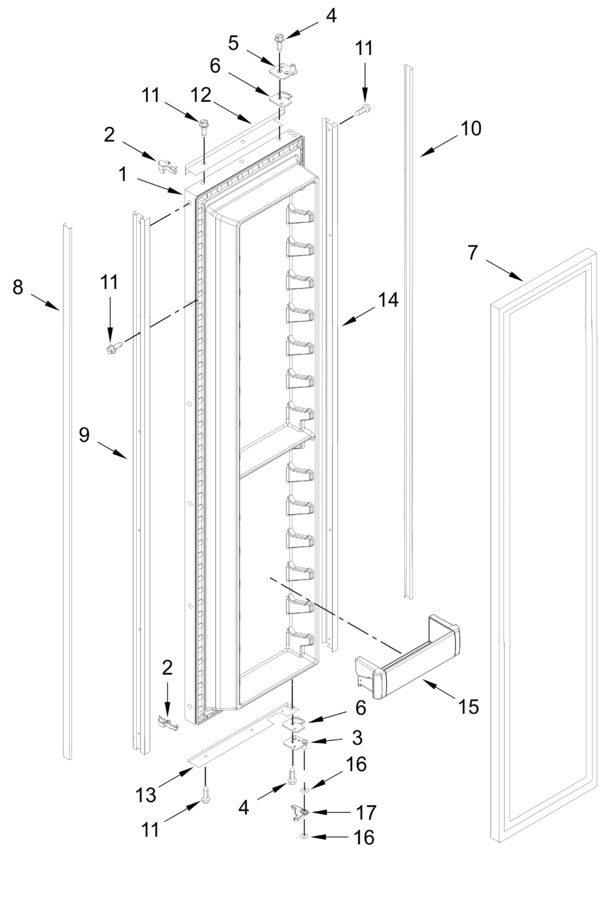

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633132		Door, Freezer   (Replaces: W11570423)		Appelez-nous	-
2	2207457		Trim, Corner				$ 57.12
3	2252294		Hinge Assembly, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W10484480		Hinge Assembly, Top				$ 64.04
6	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 108.07
7	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 295.71
8	2314003S		Cover, Trim (aluminum, Handle Side)				$ 174.63
9	2309497S		Trim, Door (aluminum, Handle Side)				$ 323.02
10	2259448S		Trim, Cover (aluminum, Hinge Side)				$ 179.50
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	2309490S		Trim, Top Door (aluminum)				$ 248.89
13	2309496S		Trim, Bottom Door (aluminum)				$ 245.49
14	2309498S		Trim, Door (aluminum, Hinge Side)				$ 324.38
15	W11627399		Bin, Shallow Door   (Replaces: W11408940)				$ 183.24
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
