| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

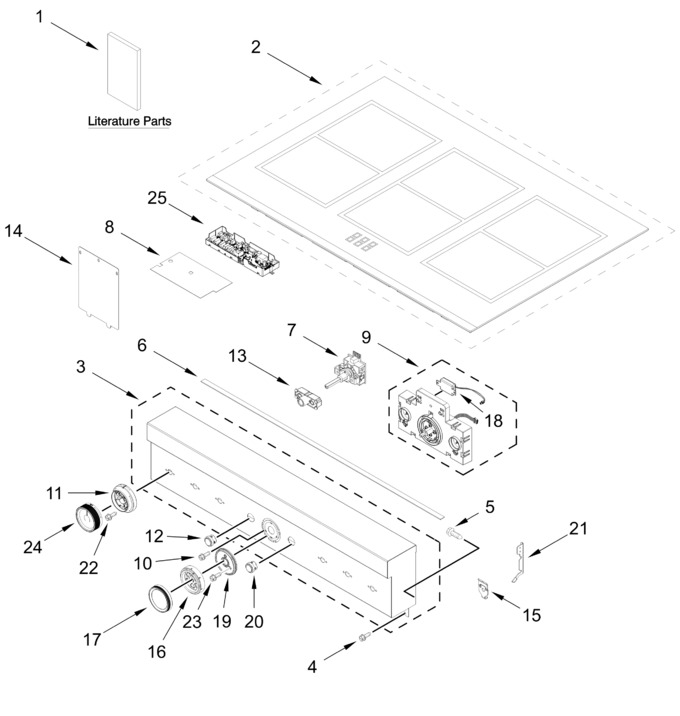

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11796137 | Glass Cooktop Assembly (Replaces: W11750844) |
|
$ 1,658.11 | |||||
| 3 | W11790532 | Console Panel (Replaces: W11774863) |
|
- | |||||
| 4 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 5 | 3196265 | Screw (Replaces: 3400099) |
|
- | |||||
| 6 | W11766188 | Gasket, Console (Replaces: W11697601) |
|
- | |||||
| 7 | W11765221 | Switch, Infinite (Replaces: W11704441) |
|
Immediately | $ 67.10 | ||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11790527 | User Interface (Replaces: W11777685) |
|
$ 465.97 | |||||
| 10 | W10674068 | Screw |
|
$ 24.39 | |||||
| 11 | W11790528 | Bezel, Induction (stainless) (Replaces: W11748798) |
|
- | |||||
| 12 | W11318857 | Button Assembly, Oven Light (Replaces: W11090651) |
|
$ 23.81 | |||||
| 13 | W11766154 | Sleeve, Bezel (Replaces: W11697214) |
|
- | |||||
| 14 | W10115843 | Cover, Ignition |
|
- | |||||
| 15 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 12.88 | |||||
| 16 | W11789785 | Knob, Oven Mode (stainless) (Replaces: W11738550) |
|
- | |||||
| 17 | W11788784 | Knob, Oven Temperature (stainless) (Replaces: W11740403) |
|
$ 61.29 | |||||
| 18 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 80.93 | |||||
| 19 | W11788782 | Bezel Assembly, Oven (stainless) (Replaces: W11738551) |
|
- | |||||
| 20 | W11319196 | Button Assembly, Oven Start (Replaces: W11090650) |
|
$ 23.67 | |||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | W11765213 | Screw (Replaces: W11736176) |
|
$ 29.86 | |||||
| 23 | W11788785 | Screw (Replaces: W11755190) |
|
- | |||||
| 24 | W11790529 | Knob, Induction (stainless) (Replaces: W11731287) |
|
- | |||||
| 25 | W11790544 | Manager, Powermax Appliance (Replaces: W11767302) |
|
$ 409.76 | |||||
| W11767729 | Quick Start Guide |
|
- | ||||||
| W11790530 | Harness, Main (36 In) (Replaces: W11745817) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11790531 | Harness, Communication (Replaces: W11766035) |
|
$ 139.03 | ||||||
| W11779946 | Installation Instructions |
|
- | ||||||
| W11776323 | Wiring Diagram (oven) |
|
- | ||||||
| W11776465 | Wiring Diagram (induction Cooktop) |
|
- | ||||||
| W11767760 | Owners Manual |
|
- | ||||||
| W11766172 | Line Filter (Replaces: W11733662) |
|
Immediately | $ 182.07 | |||||
| W11765166 | Harness, User Interface Display (Replaces: W11705029) |
|
- | ||||||
| W11766171 | Harness, Console (Replaces: W11698528) |
|
- |
