Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11789689 Kickplate   (Replaces: W11739030) Special Order $ 483.26

2 W11766189 Back, Chassis   (Replaces: W11758515) Appelez-nous -
3 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

4 W11095572 Duct, Bottom (36 In) Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10859931 Leveler   (Replaces: 9760860) Special Order $ 119.11

7 W10908710 Base, Leveling Leg Special Order $ 145.26

8 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

9 W11369237 Cabinet, Appliance Manager Special Order $ 89.38

10 W10115869 Shaft, Long In-Stock Immediately $ 109.36

11 W10115793 Shaft, Short Special Order $ 75.83

12 489504 E-ring Special Order $ 7.40

13 W11765962 Bracket, Rear Chassis   (Replaces: W11758326) Appelez-nous -
14 W11087493 Support, Channel Special Order $ 93.00

15 W11676901 Gasket, Oven (36 In)   (Replaces: W11115330) Special Order $ 75.74

16 W11765275 Duct-chassis, Rear   (Replaces: W11695987) Appelez-nous -
17 W11320146 Channel, Wire   (Replaces: W11084360) Appelez-nous -
18 W11362015 Retainer, Gasket (9 In) Special Order $ 158.18

19 W11324985 Top, Chassis Appelez-nous -
20 W11040801 Chassis, Bottom Special Order $ 223.69

21 W11766191 Panel, Top Back   (Replaces: W11683557) Appelez-nous -
22 W11034133 Panel, Back Bottom Special Order $ 65.16

23 W11765960 Duct, Extension   (Replaces: W11695808) Appelez-nous -
24 W11766196 Bracket, Front   (Replaces: W11695005) Appelez-nous -
25 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

26 W11320147 Drawer, Appliance Manager   (Replaces: W11106341) Appelez-nous -
27 W11766195 Duct, Top   (Replaces: W11694890) Appelez-nous -
28 W11765277 Panel, Cabinet Side (left)   (Replaces: W11707979) Appelez-nous -
29 W11765278 Panel, Cabinet Side (right)   (Replaces: W11707981) Appelez-nous -
30 7101P33860 Screw Appelez-nous -
W11368870 Retainer, Gasket (12 In)   (Replaces: W10157511) Special Order $ 24.91


    View Diagram in Separate Window     Print Icon   Print Part List

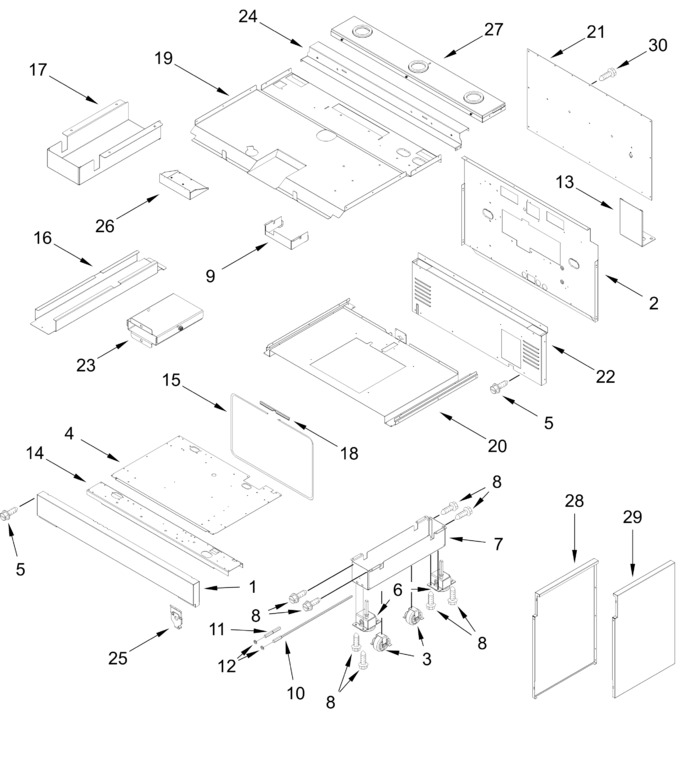

Diagram for KFIS936SSS00
