Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10818234 Slope, Exhaust Vent (30 In) Appelez-nous -
2 W11320402 Vent, Cooling Top (30 In)   (Replaces: W11105223) Special Order $ 139.98

3 W11248652 Blower   (Replaces: W11200129) In-Stock Immediately $ 241.54

4 W11320403 Vent, Cooling Bottom (30 In)   (Replaces: W11105222) Appelez-nous -
5 W11320405 Plate, Cooling Latch   (Replaces: W11109518) Appelez-nous -
6 W11320158 Box, Terminal   (Replaces: W11284049) Appelez-nous -
7 7101P42660 Screw Appelez-nous -
8 W11047754 Bracket, Blower Mount Appelez-nous -
9 W10270397 Seal, Vent Slope (30 In) Appelez-nous -
10 W10270396 Seal, Chimney Appelez-nous -
11 WP9761958 Block, Terminal   (Replaces: 9761958) In-Stock Immediately $ 47.96

12 W11819303 Cover, Connector   (Replaces: 8285593) Appelez-nous -
13 W11765963 Cover, Channel   (Replaces: W11738747) Appelez-nous -
14 W10145363 Duct, Primary Air (30 In) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

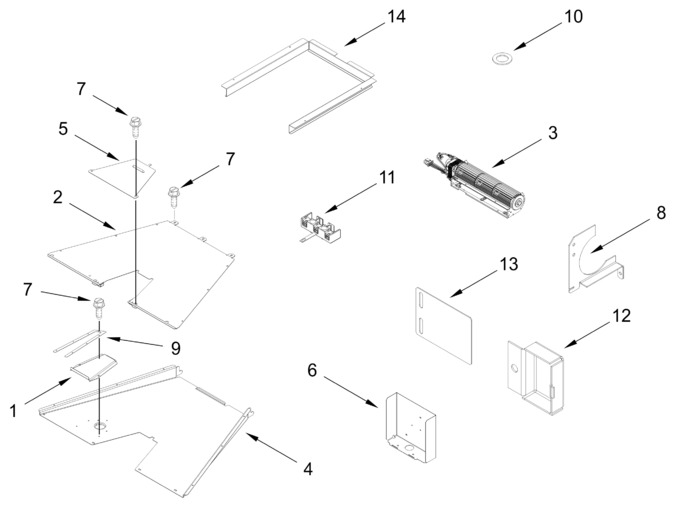

Diagram for KFIS936SSS00
