SELECT A DIAGRAM

Chassis Parts


Cooktop And Control Panel Parts


Induction Module Parts


Internal Oven Parts


Optional Parts (not Included)

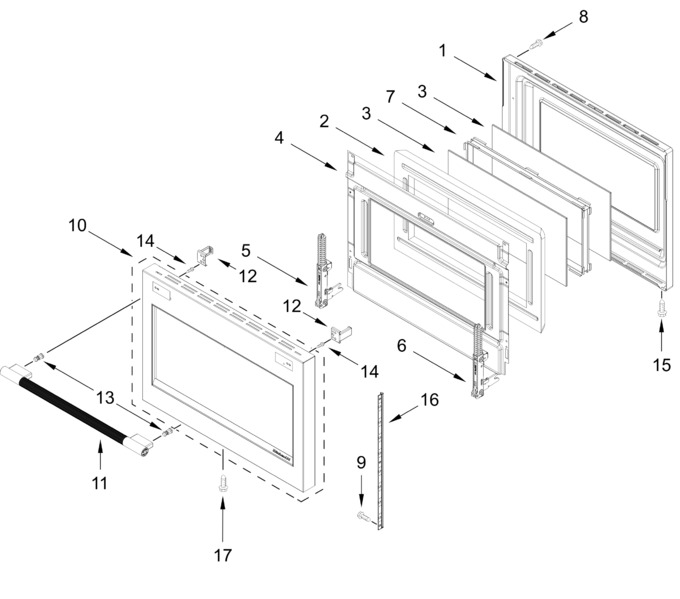

Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11334152		Liner, Door   (Replaces: W11036772)				$ 417.57
2	W11688331		Insulation, Door   (Replaces: W10884823)				$ 46.39
3	W11334153		Glass, Inner   (Replaces: W11036791)				$ 125.70
4	W11194820		Retainer, Glass				$ 190.50
5	W11568941		Hinge, Door (left)   (Replaces: W11096978)			Immediately	$ 115.01
6	W11568813		Hinge, Door (right)   (Replaces: W11096977)			Immediately	$ 84.80
7	W11194814		Frame, Glass			Immediately	$ 349.83
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10162096		Screw				$ 21.90
10	W11795863		Outer Door Assembly (stainless)   (Replaces: W11753568)		Appelez-nous	-
11	W11789690		Handle Assembly (stainless)   (Replaces: W11732559)		Appelez-nous	-
12	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
13	W11773159		Stud   (Replaces: W11687274)				$ 29.86
14	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
16	W11765964		Trim, Door Side   (Replaces: W11714784)		Appelez-nous	-
17	7101P42660		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
