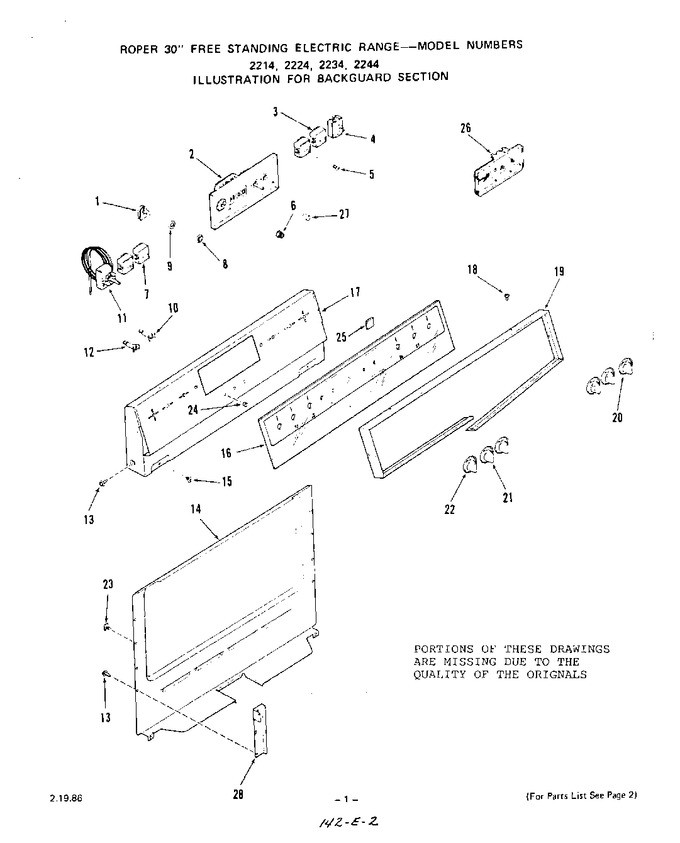

02 - Backguard


03 - Main Top


04 - Canning Element , Griddle


05 - Body


06 - Oven Door


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	298794		Push Switch-oven Light		Appelez-nous	-
2	322307		All 2224 & 2244 Models		Appelez-nous	-
3	324608		Lt. Frt., Rt. Rr. All 2224, 2244, 1a & 2a		Appelez-nous	-
3	324609		Rt. Frt., Lt. Rr. All 2224, 2244, 1a & 2a		Appelez-nous	-
3	320945		Lt. Frt., Rt.rr. All 22141a, 2a; 2234		Appelez-nous	-
3	5500-200		Rt. Frt., Lt. Rt. All 22141a, 2a; 2234   (Replaces: 320946)			Immediately	$ 60.94
4	320942		Selector Switch		Appelez-nous	-
5	78565		Screw 8-32x3/16`` (2 Ea. For 3,4,7 & 11)		Appelez-nous	-
6	294810		1 Req. Minute Timer		Appelez-nous	-
7	5500-200		Infinite Control (4 Req) All 22140a, 22240a 22440a Models   (Replaces: 320944)			Immediately	$ 60.94
8	109883		Nut-trim 3/8-27		Appelez-nous	-
9	236129		Pal Nut (2 Req)		Appelez-nous	-
10	323228		Indicator Light (surface)		Appelez-nous	-
11	320937		2214, 2224, 2234, 2244 0a & 1a Models		Appelez-nous	-
11	321958		2214, 2234, 2244 2a Models		Appelez-nous	-
12	326871		Indicator Light-oven		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	326122		Cover-backguard Wire		Appelez-nous	-
15	326974		Screw 10abx1/2``		Appelez-nous	-
16	322300		All 2224 & 2244 Models		Appelez-nous	-
16	322298		All 2214 & 2234 Models		Appelez-nous	-
17	319964		Coffee 2214c		Appelez-nous	-
17	328411		Toast 2234t & 2244t		Appelez-nous	-
17	328410		Platinum 2234p & 2244p		Appelez-nous	-
17	322511		Almond 2224l & 2244l		Appelez-nous	-
17	319967		Almond 2214l & 2234l		Appelez-nous	-
17	322510		Golden Wheat 2224h & 2244h		Appelez-nous	-
17	319966		Golden Wheat 2214h & 2234h		Appelez-nous	-
17	319963		White 2214w &2234w		Appelez-nous	-
17	322507		White 2224w & 2244w		Appelez-nous	-
17	319965		Avocado 2214a		Appelez-nous	-
18	327621		Screw 6-20x3/8``		Appelez-nous	-
19	308007		Bezel-backguard		Appelez-nous	-
20	326948		Knob-selector Switch		Appelez-nous	-
21	326944		Knob-infinite Control		Appelez-nous	-
22	326954		Knob-thermostat		Appelez-nous	-
23	70588		Trim Clip		Appelez-nous	-
24	325677		Lens-indicator Light (2 Req)		Appelez-nous	-
25	322302		Spacer-backguard Glass (2 Req)		Appelez-nous	-
26	333049		All 2214, 2234, 2a Models		Appelez-nous	-
26	322305		All 2214 & 2234 0a & 1a Models		Appelez-nous	-
27	109225		Knob-clock (start & Stop Time) (2)		Appelez-nous	-
28	327107		Left		Appelez-nous	-
28	327106		Right		Appelez-nous	-
