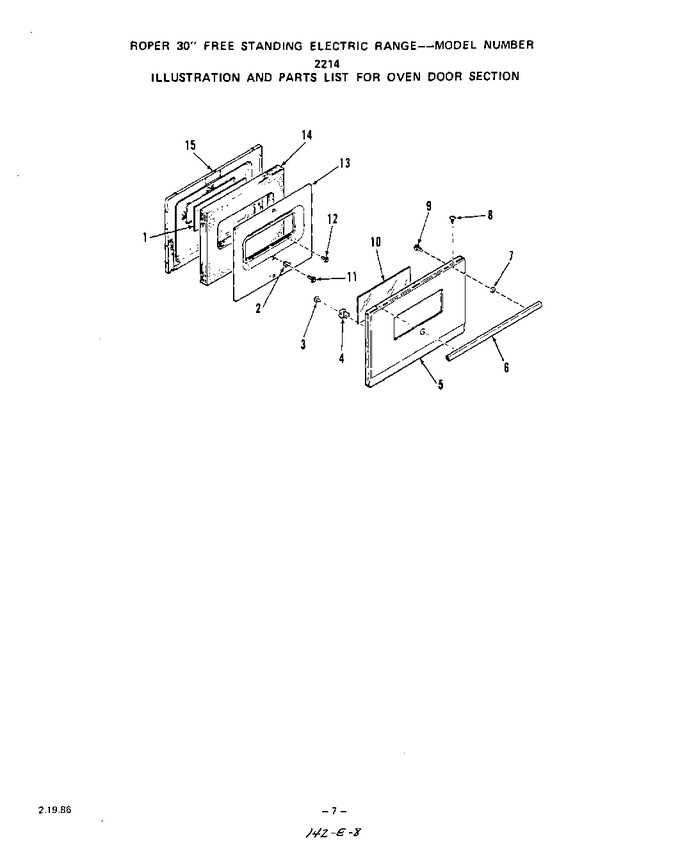

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326010		Inner Glass-oven Door		Appelez-nous	-
2	327269		Spacer		Appelez-nous	-
3	239113		Screw 10-32x3/8``		Appelez-nous	-
4	299592		Retainer-door Glass (2 Req)		Appelez-nous	-
5	325969		Golden Wheat		Appelez-nous	-
5	325971		Avocado		Appelez-nous	-
5	325972		Coffee		Appelez-nous	-
5	325968		White		Appelez-nous	-
5	325970		Almond		Appelez-nous	-
6	292240		Handle-oven Door		Appelez-nous	-
7	302343		Spacer-door Handle		Appelez-nous	-
8	316849		Screw-10-32x1/2``		Appelez-nous	-
9	295850		Screw 10-21x7/16``		Appelez-nous	-
10	326583		All 22142a Models		Appelez-nous	-
10	326090		All Except 22142a Models		Appelez-nous	-
11	327320		Screw 10-16x7/16``		Appelez-nous	-
12	104520		Screw 10-32 X 17/32``		Appelez-nous	-
13	325996		Insulation Retainer-oven Door		Appelez-nous	-
14	325999		Insulation		Appelez-nous	-
15	331743		22141a & 2a Models		Appelez-nous	-
15	325943		22140a Models		Appelez-nous	-
