SELECT A DIAGRAM

02 - Backguard

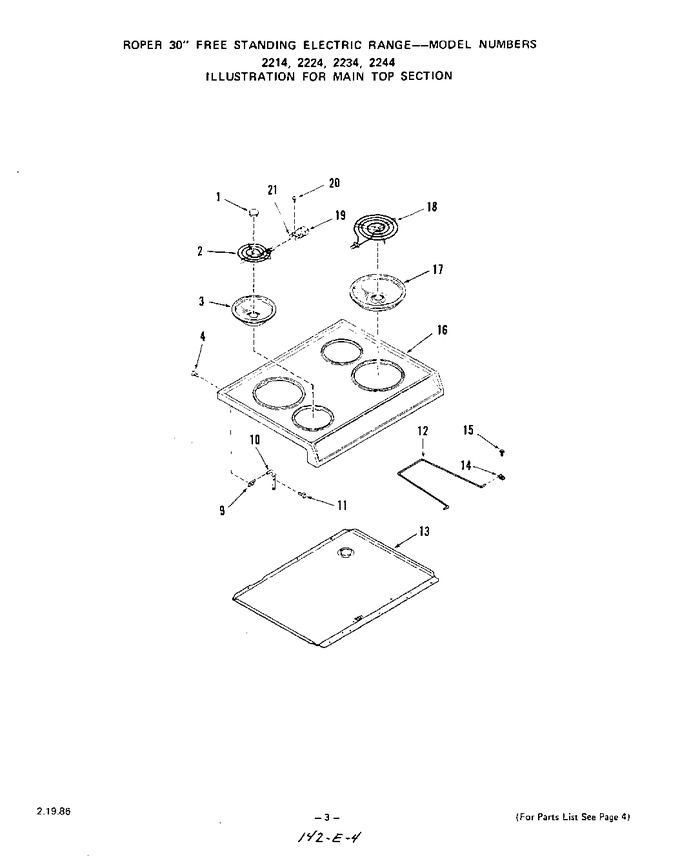

03 - Main Top


04 - Canning Element , Griddle


05 - Body


06 - Oven Door


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion (4 Req)		Appelez-nous	-
2	PS15-4BK		All 2224 & 2244 Models   (Replaces: 325510)			Immediately	$ 39.95
2	325507		All 2214 & 2234 Models		Appelez-nous	-
3	WPW10196406		6`` Chrome Bowl-lt., Rt. Rear & Lt. Front   (Replaces: 296481)			Immediately	$ 13.80
4	326974		Screw 10abx1/2``		Appelez-nous	-
9	320931		Bracket-main Top Hinge (lt. Or Rt.)		Appelez-nous	-
10	320921		Right		Appelez-nous	-
10	320922		Left		Appelez-nous	-
11	321162		Screw 10-32 X 3/4``		Appelez-nous	-
12	320725		Support Rod-main Top		Appelez-nous	-
13	326062		22140a, 2240a, 22340a, 22440a		Appelez-nous	-
13	331590		2214, 2224, 2234, 2244 1a & 2a		Appelez-nous	-
14	285945		Clip (2 Req)		Appelez-nous	-
15	327320		Screw 10-16x7/16``		Appelez-nous	-
16	326532		Coffee		Appelez-nous	-
16	326533		Avocado		Appelez-nous	-
16	328353		Toast		Appelez-nous	-
16	328354		Platinum		Appelez-nous	-
16	326531		Almond		Appelez-nous	-
16	326534		Golden Wheat		Appelez-nous	-
16	326530		White		Appelez-nous	-
17	WPW10196405		8`` Chrome Bowl (rt. Front & Lt. Rear)   (Replaces: 304969)			Immediately	$ 17.29
18	325503		All 2214 & 2234 Models		Appelez-nous	-
18	PS26-4BK		All 2224 & 2244 Models   (Replaces: 325506)			Immediately	$ 44.95
19	330031		Terminal Block W/wire Lead (4 Req)   (Replaces: 318960)			Immediately	$ 19.92
20	299632		Screw 7-32x5/16``		Appelez-nous	-
21	318872		Bracket-terminal Block (4 Req)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
