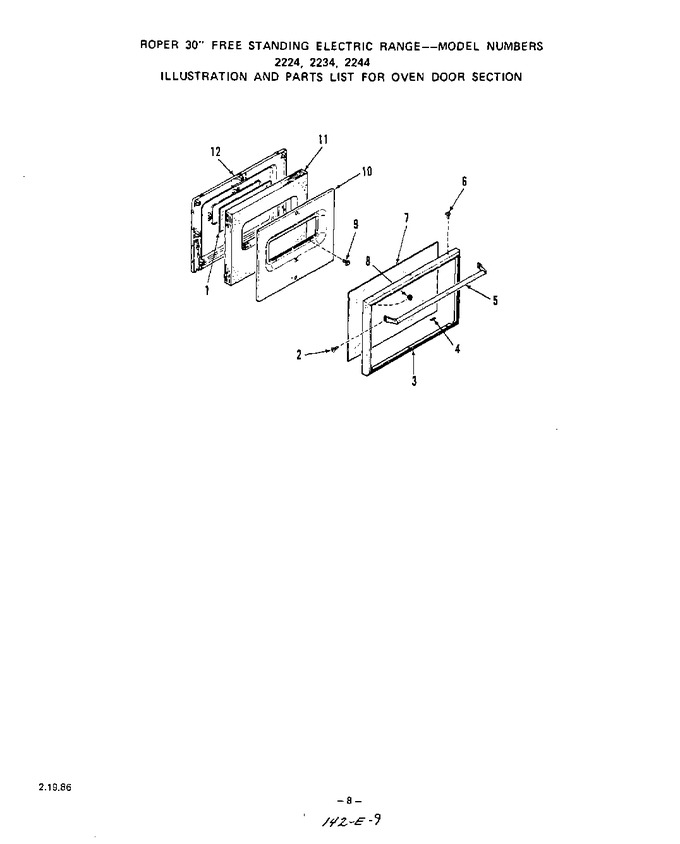

06 - Oven Door


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326010		Inner Glass-oven Door		Appelez-nous	-
2	319447		Screw 8-32 X 1/2``		Appelez-nous	-
3	326002		Frame-oven Door		Appelez-nous	-
4	112370		Cushion (5 Req)		Appelez-nous	-
5	303342		Handle		Appelez-nous	-
6	316849		Screw-10-32x1/2``		Appelez-nous	-
7	326367		Outer Glass-oven Door		Appelez-nous	-
8	239764		Keps Nut 8-32		Appelez-nous	-
9	104520		Screw 10-32 X 17/32``		Appelez-nous	-
10	325996		Insulation Retainer-oven Door		Appelez-nous	-
11	325999		Insulation		Appelez-nous	-
12	331581		All 22241a Models		Appelez-nous	-
12	326589		Except 2214, 2234 2a Models		Appelez-nous	-
12	333654		All 2214, 2234 2a Models		Appelez-nous	-
12	326561		All 2214 & 2234 Models		Appelez-nous	-
12	326563		All 2224 & 2244 Models		Appelez-nous	-
12	326570		Electric Use & Care Guide		Appelez-nous	-
12	325947		All 22240a Models		Appelez-nous	-
12	325946		All 2234, 2244 Models		Appelez-nous	-
12	331376		Main Top		Appelez-nous	-
12	326588		Except 2214, 2234 2a Models		Appelez-nous	-
12	333653		All 2214, 2234 2a Models		Appelez-nous	-
	333208		Xinstallation Guide		Appelez-nous	-
	333718		Xrepair Parts List		Appelez-nous	-
