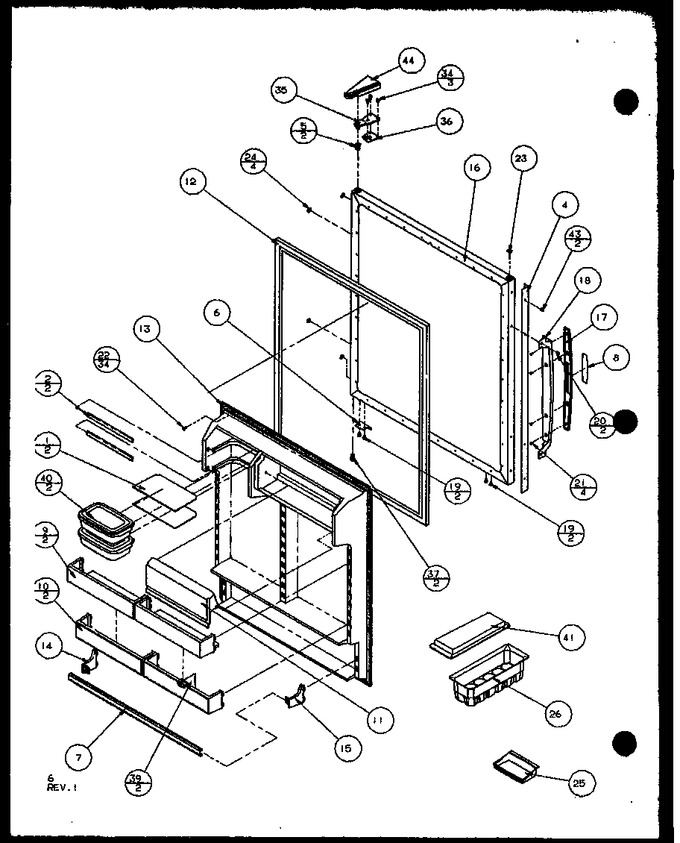

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10391101 | Shelf Sec. Service |
|
- | |||||
| 2 | 10304102 | Extrusion-sgc Service |
|
- | |||||
| 4 | D7739606 | Trim, L |
|
- | |||||
| 4 | D7739604 | Trim, White |
|
- | |||||
| 5 | 10392602 | Bushing |
|
- | |||||
| 6 | 10266101 | Stop Door |
|
- | |||||
| 7 | C8907222 | Retainer, Pkg |
|
- | |||||
| 8 | C8945004 | Nameplate |
|
- | |||||
| 9 | D7565407 | Door Shelf V |
|
- | |||||
| 10 | D7574507 | Cont Door Ret V |
|
- | |||||
| 11 | D7805703 | Dairy Door |
|
- | |||||
| 12 | D7605116 | Gasket, Door |
|
- | |||||
| 13 | 10289501 | Liner Ref Door |
|
- | |||||
| 14 | D7681803 | Cap, Pkg Retainer End |
|
- | |||||
| 15 | D7681804 | Cap, Pkg Retainer End |
|
- | |||||
| 16 | 10288602WQ | Ref Dr Fm Assy |
|
- | |||||
| 16 | 10288602LQ | L Ref Dr Assy Fm |
|
- | |||||
| 17 | D7694706 | Insert, L Handle |
|
- | |||||
| 17 | D7694704 | Insert, Handle |
|
- | |||||
| 18 | D7694803 | Handle |
|
$ 125.50 | |||||
| 19 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 20 | 67006529 | Screw Sm (Replaces: M0206219) |
|
$ 13.47 | |||||
| 21 | WP8281236 | Screw (counter Sunk) (Replaces: M0215704) |
|
$ 8.16 | |||||
| 22 | M0219730 | Screw |
|
$ 7.65 | |||||
| 23 | M0310606 | Plug |
|
- | |||||
| 23 | M0310601 | Plug |
|
- | |||||
| 24 | M0310714 | Plug |
|
- | |||||
| 24 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 25 | 10310901 | Tray, Butter |
|
- | |||||
| 26 | D7695605 | Egg Bucket V |
|
- | |||||
| 34 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 35 | B5744301 | Hinge |
|
- | |||||
| 36 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 36 | B8389003 | Shim, Top Hinge, .016 |
|
- | |||||
| 36 | B8389002 | Shim Top Hinge |
|
- | |||||
| 37 | 10392601 | Bushing |
|
- | |||||
| 39 | D7806102 | Snugger Door Shelf |
|
- | |||||
| 40 | D7806404 | Container Sec. Ser. |
|
- | |||||
| 41 | D7805902 | Cover, Egg Bucket |
|
- | |||||
| 43 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 44 | D7872105 | Cover Hinge L |
|
- | |||||
| 44 | D7872103 | Cover Hinge L |
|
- |
