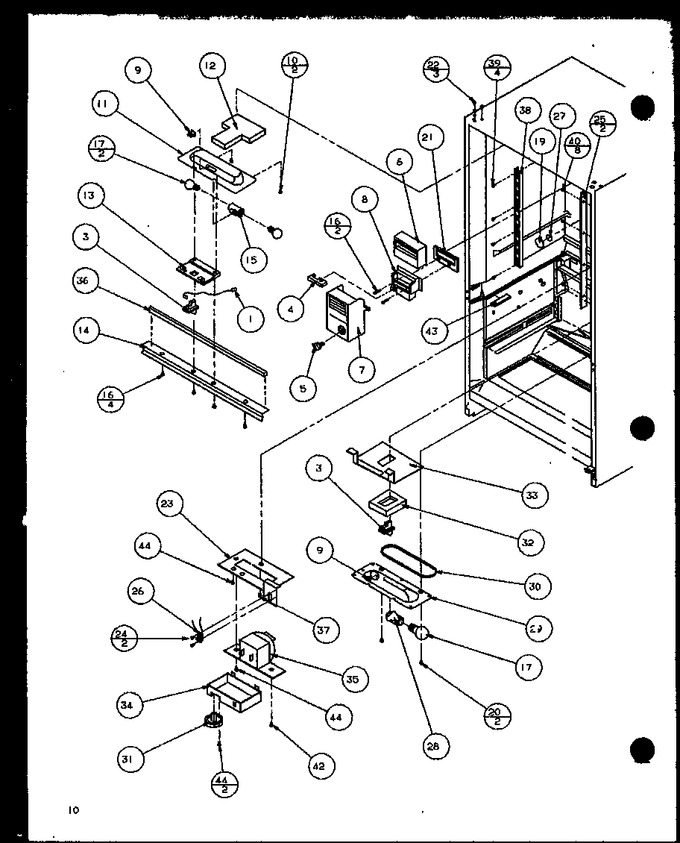

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5781002 | Jumper Wire |
|
- | |||||
| 3 | W11384469 | Switch-nc Light (Replaces: C3680307) |
|
Immediately | $ 39.09 | ||||
| 4 | C8902601 | Insert, Control |
|
- | |||||
| 5 | D7009802 | Knob |
|
- | |||||
| 6 | D7687701 | Insul. Damper |
|
- | |||||
| 7 | D7687510 | Cover, Refr Control |
|
- | |||||
| 8 | D7547403 | Damper Control Kit |
|
- | |||||
| 9 | B5733302 | Clip, Ground |
|
- | |||||
| 10 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 11 | D7716404 | Housing-ref Light |
|
- | |||||
| 12 | C8778301 | Insulation |
|
- | |||||
| 13 | D7297603 | Cover, Light Sw |
|
- | |||||
| 14 | D7288103 | Shield Light |
|
- | |||||
| 15 | D7808602 | Socket, Dual Lamp |
|
- | |||||
| 16 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 17 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 19 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 20 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 21 | B8345401 | Gasket, Damper |
|
- | |||||
| 22 | M0310716 | Plug |
|
- | |||||
| 22 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 23 | C8943302 | Bracket, Control |
|
- | |||||
| 24 | M0010215 | Pop Rivet |
|
- | |||||
| 25 | D7599105 | Ladder, Side |
|
- | |||||
| 26 | M0350101 | Switch |
|
- | |||||
| 27 | B8362503 | Insulation |
|
- | |||||
| 28 | D7714403 | Socket-light |
|
- | |||||
| 29 | C8730102 | Shield, Light |
|
- | |||||
| 30 | B5759607 | Gasket |
|
- | |||||
| 31 | D7689901 | Knob, Control |
|
- | |||||
| 32 | B8314801 | Gasket |
|
- | |||||
| 33 | C8940401 | Barrier Lt. S.w. |
|
- | |||||
| 34 | D7878809 | Cover, Temp. Control |
|
- | |||||
| 35 | C8946701 | Control Temp |
|
- | |||||
| 36 | A3030328 | Gasket (1= 1ft.) |
|
- | |||||
| 37 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 38 | D7599002 | Ladder, Center |
|
- | |||||
| 39 | M0230923 | Screw |
|
- | |||||
| 40 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 42 | M0253916 | Screw |
|
- | |||||
| 43 | B5759618 | Gasket Air Block |
|
- | |||||
| 44 | M0216531 | Screw |
|
- |
