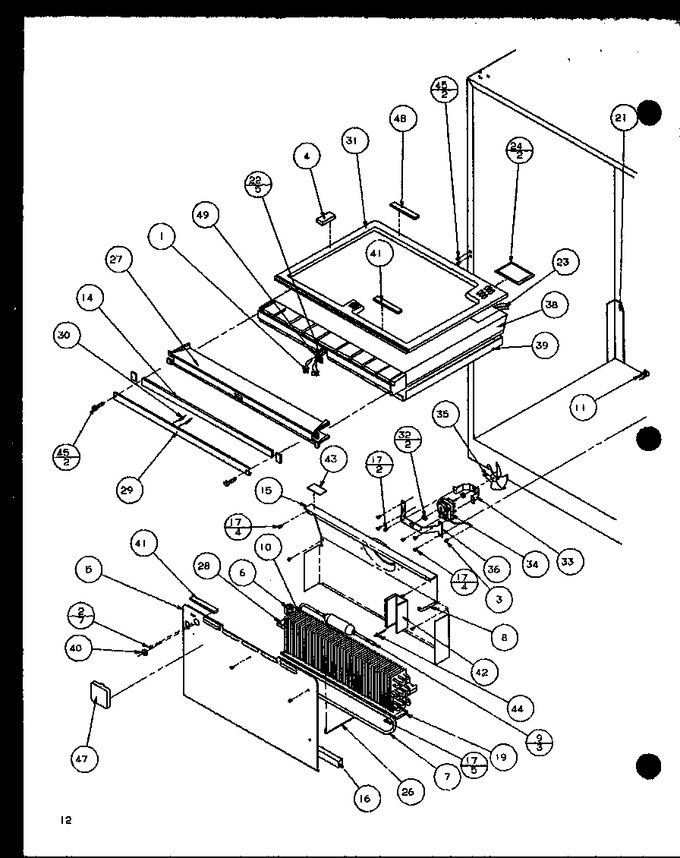

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Page 1
02 - Page 2
03 - Page 3
04 - Page 4
05 - Page 5
06 - Page 6
07 - Page 7
08 - Page 8
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10291801 | Harness, Mullion |
|
- | |||||
| 2 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 3 | M0253916 | Screw |
|
- | |||||
| 4 | B5759617 | Gasket, Sealing |
|
- | |||||
| 5 | D7874703 | Cover Evap |
|
- | |||||
| 6 | WP10442411 | Thermostat, Defrost (Replaces: C8978402) |
|
Immediately | $ 44.02 | ||||
| 7 | D7718301 | Heater Defrost |
|
- | |||||
| 8 | D7759001 | Heat Exchanger |
|
- | |||||
| 9 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 10 | R0170030 | Assy,low Side |
|
- | |||||
| 11 | D7711701 | Harness Liner |
|
- | |||||
| 14 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 15 | D7691116 | Evap Fan Schroud |
|
- | |||||
| 16 | A3189320 | Gasket, Foam |
|
- | |||||
| 17 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 19 | D7679402 | Tray, Drip |
|
- | |||||
| 21 | C8953701 | Barrier |
|
- | |||||
| 22 | A3195601 | Clamp-wiring |
|
- | |||||
| 23 | D7742901 | Heater-ref Bottom |
|
- | |||||
| 24 | A3263905 | Gasket-per Ft |
|
- | |||||
| 26 | M0103502 | Clamp |
|
- | |||||
| 27 | 10367101 | Frame Ctr Brk |
|
- | |||||
| 28 | B8373201 | Block Evap Coil |
|
- | |||||
| 29 | C8842519 | W Center Mull. -pnt |
|
- | |||||
| 29 | C8842513 | Center Mullion, Almond |
|
- | |||||
| 30 | D7654507 | Heater-mullion |
|
- | |||||
| 31 | D7681701 | Bottom Ref. |
|
- | |||||
| 32 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 33 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 34 | WPC8891605 | Motor, Evap Fan (Replaces: C8891601) |
|
$ 344.82 | |||||
| 35 | C8927801 | Blade, Evap Fan |
|
- | |||||
| 36 | D7524501 | Brkt Evap Fan Shroud |
|
- | |||||
| 38 | 10377701 | Block-waxed Ctr |
|
- | |||||
| 39 | D7878701 | Top Freezer |
|
- | |||||
| 40 | A3138301 | Grommet |
|
- | |||||
| 41 | A3030328 | Gasket (1= 1ft.) |
|
- | |||||
| 42 | D7680901 | Duct, Returnair |
|
- | |||||
| 43 | B8358502 | Gasket |
|
- | |||||
| 44 | A4539602 | Pop Rivet |
|
- | |||||
| 45 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 47 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 48 | B5759616 | Gasket |
|
- | |||||
| 49 | M0585203 | Tie, Wire |
|
- |
