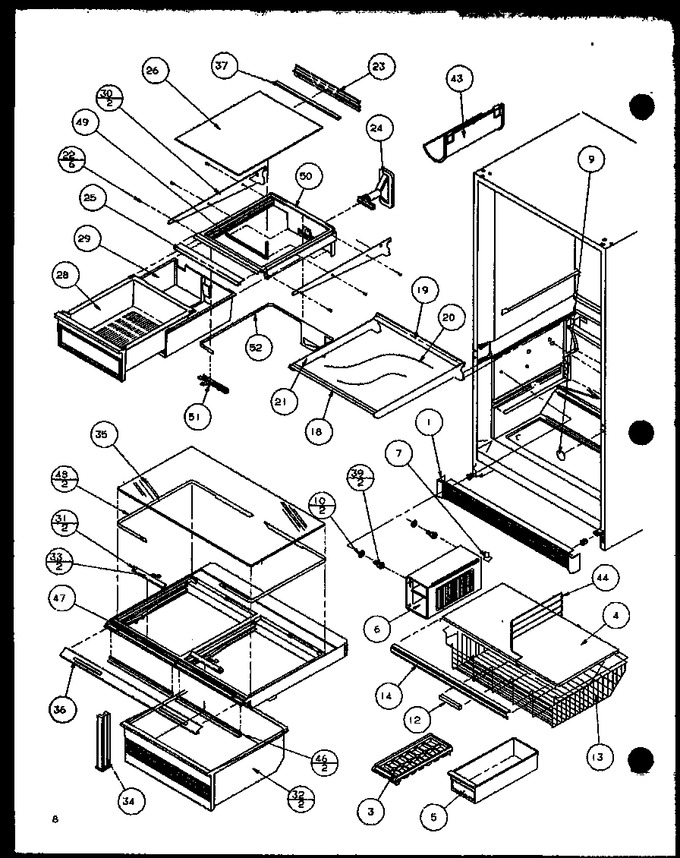

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520512 | Grille-toe K |
|
- | |||||
| 1 | D7520514 | Grille-toe L |
|
- | |||||
| 3 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 4 | D7681202 | Shelf |
|
- | |||||
| 5 | D7620010 | Ice Bin |
|
- | |||||
| 6 | D7620106 | Rack, Ice Service |
|
- | |||||
| 7 | B5720301 | Clip |
|
- | |||||
| 9 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 10 | M0270508 | Washer |
|
- | |||||
| 12 | B0571806 | Handle Basket |
|
- | |||||
| 13 | D7677402 | Basket |
|
- | |||||
| 14 | C8832508 | Trim Shelf |
|
- | |||||
| 18 | 10049909 | Trim, Shelf |
|
- | |||||
| 19 | C8913601 | Trim, Shelf |
|
- | |||||
| 20 | D7421284 | Glass Shelf |
|
- | |||||
| 21 | D7871002 | Frame, Cantilever |
|
- | |||||
| 22 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 23 | C8990401 | Trim, Rear Shelf |
|
- | |||||
| 24 | D7859305 | Grommet M.k. |
|
- | |||||
| 25 | 10049911 | Trim |
|
- | |||||
| 26 | D7421256 | Glass Shelf Mk |
|
- | |||||
| 28 | D7698316 | Meat Pan |
|
- | |||||
| 29 | D7698105 | Sleeve, Meat Keeper |
|
- | |||||
| 30 | D7862903 | Blank Side Rail |
|
- | |||||
| 30 | D7862904 | Blank Side Rail |
|
- | |||||
| 31 | 10038401 | Knob, Crisper Control |
|
- | |||||
| 32 | D7581025 | Pan Crisper |
|
- | |||||
| 33 | D7860601 | Slide, Crisper Control |
|
- | |||||
| 34 | D7602202 | Crisper Support Post |
|
- | |||||
| 35 | D7421260 | Glass Crisper Top Gg |
|
- | |||||
| 36 | D7616626 | Trim |
|
- | |||||
| 37 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 39 | M0219559 | Screw |
|
- | |||||
| 43 | D7547604 | Bottle Rack |
|
- | |||||
| 44 | D7815401 | Divider, Frz Shelf |
|
- | |||||
| 46 | D7718402 | Seal Crisper |
|
- | |||||
| 47 | D7856501 | Frame |
|
- | |||||
| 48 | D7859603 | Band Crisper Control |
|
- | |||||
| 49 | A3263905 | Gasket-per Ft |
|
- | |||||
| 50 | D7853301 | Frame, M.k |
|
- | |||||
| 51 | D7859401 | Slide-mk Control |
|
- | |||||
| 52 | D7859503 | Band M.k. Control |
|
- | |||||
| NI | D7871135 | Glass Shelf Assy Q |
|
- | |||||
| NI | R0179187 | Glass Crisper Frame Assy |
|
- |
