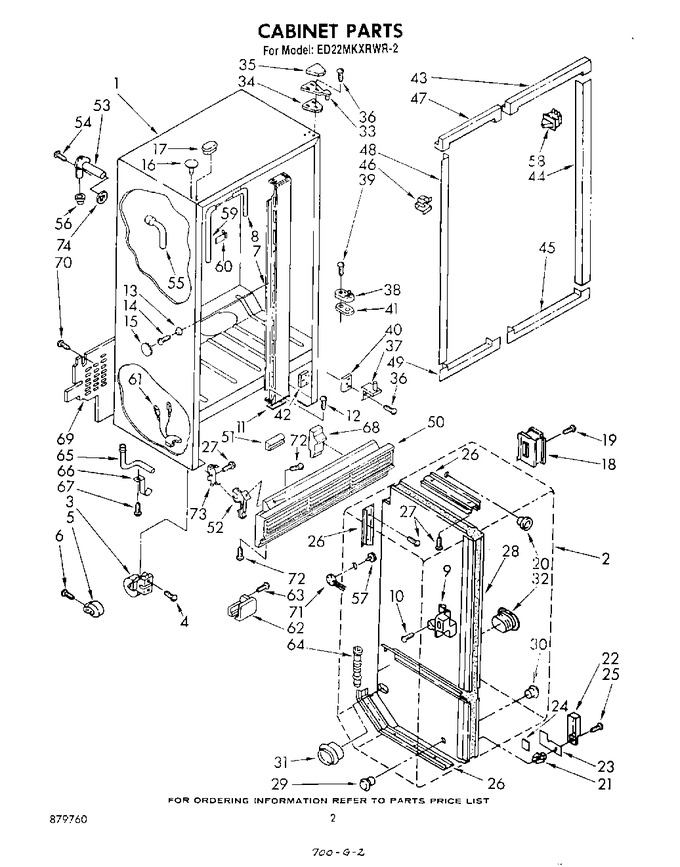

02 - Cabinet
03 - Airflow And Control
04 - Refrigerator Door
05 - Freezer Door
06 - Unit
07 - Shelf, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 3 | 981127 | Roller, Front |
|
- | |||||
| 4 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 5 | WPW10250570 | Roller, Rear (Replaces: 981122) |
|
$ 42.18 | |||||
| 6 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 7 | 985974 | Center Rail Mullion (white) |
|
- | |||||
| 7 | 989921 | Center Rail Mullion (golden Harvest) |
|
- | |||||
| 7 | 1101361 | Center Rail, Mullion (toast) |
|
- | |||||
| 7 | 1101362 | Center Rail, Mullion (platinum) |
|
- | |||||
| 7 | 989923 | Center Rail Mullion (almond) |
|
- | |||||
| 8 | 936199 | Heater, Mullion |
|
- | |||||
| 9 | 849367 | Stabilizer, Mullion |
|
$ 8.30 | |||||
| 10 | WP488787 | Screw, 8-18 X 1/2 (Replaces: 487927) |
|
$ 11.26 | |||||
| 11 | 983592 | Spacer |
|
- | |||||
| 12 | WP308685 | Screw (repair) (Replaces: 488258) |
|
Immediately | $ 7.87 | ||||
| 12 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 13 | 849368 | Spacer Screw, Stabilizer |
|
- | |||||
| 14 | 488318 | Screw, 8 X 7/8 |
|
- | |||||
| 15 | 848414 | Hole Cover |
|
- | |||||
| 16 | 989957 | Hole, Plug (golden Harvest) |
|
- | |||||
| 16 | 1101314 | Hole, Plug (toast) |
|
- | |||||
| 16 | 989958 | Hole Plug (almond) |
|
- | |||||
| 16 | 849391 | Hole, Plug (white) |
|
- | |||||
| 16 | 1101315 | Hole, Plug (platinum) |
|
- | |||||
| 17 | 1101317 | Hole Plug (platinum) |
|
- | |||||
| 17 | 992770 | Hole Plug (white) |
|
- | |||||
| 17 | 1101316 | Hole Plug (toast) |
|
- | |||||
| 17 | 992773 | Hole Plug (golden Harvest) |
|
- | |||||
| 17 | 992774 | Hole Plug (almond) |
|
- | |||||
| 18 | 848433 | Control Connector & Gasket Assembly |
|
- | |||||
| 19 | WP488163 | Screw, 8 X 15/16 (Replaces: 488208) |
|
$ 7.92 | |||||
| 20 | 851020 | Grommet, Wiring |
|
- | |||||
| 21 | 537095 | Expansion Clip |
|
- | |||||
| 22 | 984101 | Escutcheon Meat |
|
- | |||||
| 23 | 984102 | Slide, Meat Control |
|
$ 5.02 | |||||
| 24 | 992358 | Pad, Foam |
|
- | |||||
| 25 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 26 | 946146 | Track Divider (back & Bottom) |
|
- | |||||
| 26 | 988455 | Track, Divider (top) |
|
- | |||||
| 27 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 28 | 935415 | Divider, Mullion |
|
- | |||||
| 29 | 843888 | Retainer, Hole Insert |
|
- | |||||
| 30 | 843887 | Insert, Hole |
|
- | |||||
| 31 | 982921 | Insert, Air Return |
|
- | |||||
| 32 | 982920 | Retainer, Insert |
|
- | |||||
| 33 | 842039 | Hinge, Top |
|
- | |||||
| 34 | 836192 | Shim, Hinge Top |
|
- | |||||
| 35 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 35 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 35 | 842010 | Hinge Cover (white) |
|
- | |||||
| 35 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 35 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 36 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 36 | 488949 | Screw (repair) |
|
- | |||||
| 37 | 986763 | Hinge Bottom (r.s.) |
|
- | |||||
| 37 | 986764 | Hinge, Bottom L.s. |
|
- | |||||
| 38 | WPW10329686 | Door Closer, Cam (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 39 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.89 | |||||
| 40 | 836196 | Shim, Hinge |
|
- | |||||
| 41 | 987179 | Shim, Door Closer |
|
- | |||||
| 42 | 836162 | Tap Plate |
|
- | |||||
| 43 | 936908 | Breaker Trim, Top |
|
- | |||||
| 44 | 935114 | Breaker, Trim R.s. |
|
- | |||||
| 45 | 848477 | Breaker, Trim (bottom) |
|
- | |||||
| 46 | 836090 | Breaker Clip, Retainer |
|
- | |||||
| 47 | 983253 | Breaker Trim, Top Freezer |
|
- | |||||
| 48 | 1115719 | Breaker Trim (l.s.) |
|
- | |||||
| 49 | 848481 | Breaker Trim (bottom) Freezer |
|
- | |||||
| 50 | 1100308 | Exterior, Grille (platinum) |
|
- | |||||
| 50 | 1100307 | Exterior, Grille (toast) |
|
- | |||||
| 50 | 944237 | Exterior, Grille (almond) |
|
- | |||||
| 50 | 944235 | Exterior, Grille (golden Harvest) |
|
- | |||||
| 50 | 944233 | Exterior, Grille (white) |
|
- | |||||
| 51 | 546131 | Bumper, Grille |
|
- | |||||
| 52 | WP944224 | Grille Support (Replaces: 944224) |
|
$ 7.94 | |||||
| 53 | WP2196157 | Fitting, Water Tube (Replaces: 849908) |
|
Immediately | $ 12.59 | ||||
| 54 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.57 | |||||
| 55 | 849909 | Tube, Water Inlet |
|
- | |||||
| 56 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 8.67 | |||||
| 57 | 850738 | Receptacle Cap |
|
- | |||||
| 58 | W11384469 | Rocker Arm Switch (2) (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 59 | 989660 | Stile Heater |
|
- | |||||
| 60 | 935663 | Stile Heater Clip |
|
- | |||||
| 61 | 548734 | Wire Assembly (water Valve) |
|
- | |||||
| 62 | 549947 | Box, Junction |
|
- | |||||
| 63 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 64 | 836068 | Drain Fitting, Liner |
|
- | |||||
| 65 | 841646 | Extension, Drain Fitting |
|
- | |||||
| 66 | 841648 | Clip, Drain Extension |
|
- | |||||
| 67 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 68 | 836372 | Insert, Air Baffle |
|
- | |||||
| 69 | 850457 | Cover, Unit Compartment |
|
- | |||||
| 70 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 71 | 481658 | Wiring Line (ice Maker) |
|
- | |||||
| 72 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 73 | 989068 | Clip, Grille |
|
- | |||||
| 74 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 |
