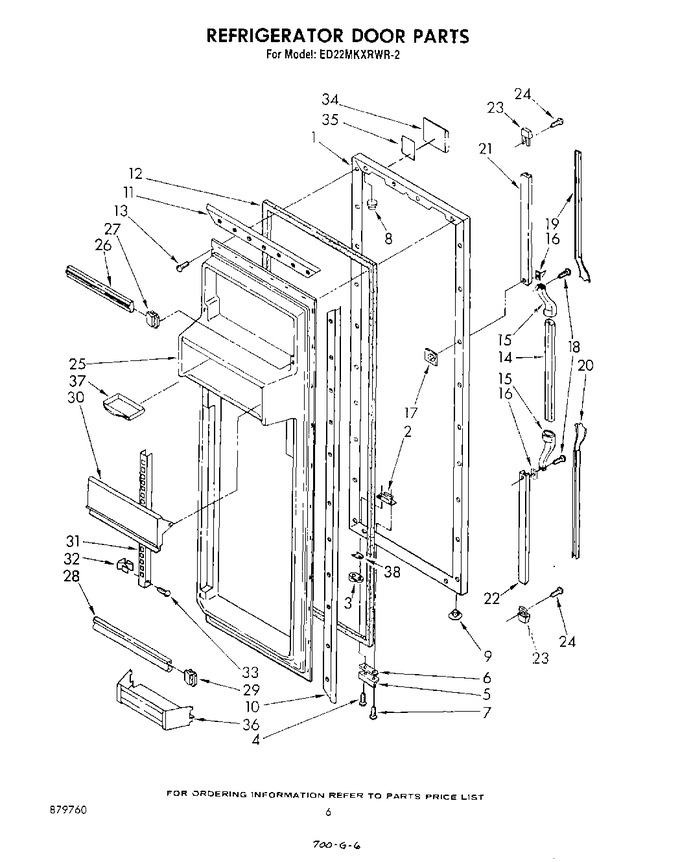

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941250		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1101364		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	1101363		Refrigerator, Door Panel (toast)				$ 1.85
1	941246		Refrigerator, Door Panel (white)		Appelez-nous	-
1	941248		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge Sleeve		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer Side, Gasket		Appelez-nous	-
11	836121		Retainer Top & Bottom Gasket		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	1111552		Handle Center (for Platinum Model Only)		Appelez-nous	-
14	1108897		Handle, Center		Appelez-nous	-
15	935103		Center End Cap (2)		Appelez-nous	-
16	935075		Shim, Handle Center (2)		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
19	1108899		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
19	1108898		Insert, Handle (top) (white)		Appelez-nous	-
19	1108900		Insert, Handle (top) (almond)		Appelez-nous	-
19	1108901		Insert, Handle (top) (toast)		Appelez-nous	-
19	1108902		Insert, Handle (top) (platinum)		Appelez-nous	-
20	1108903		Insert, Handle (bottom) (white)		Appelez-nous	-
20	1108906		Insert, Handle (bottom) (toast)		Appelez-nous	-
20	1108905		Insert, Handle (bottom) (almond)		Appelez-nous	-
20	1108904		Insert, Handle (bottom) (golden Harvest)		Appelez-nous	-
20	1108907		Insert, Handle (bottom) (platinum)		Appelez-nous	-
21	941260		Retainer Insert (top)		Appelez-nous	-
22	941262		Retainer Insert (bottom)		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	489075		Screw, 10-32 X 5/8		Appelez-nous	-
25	988671		Interior Door, Panel		Appelez-nous	-
26	1108786		Trim, Interior Door (top)		Appelez-nous	-
27	839904		Retainer, Door Trim				$ 5.65
28	1108787		Trim, Interior Door (bottom)		Appelez-nous	-
29	988709		Retainer Door Trim		Appelez-nous	-
30	1108788		Compartment Door, Utility		Appelez-nous	-
31	983804		Shelf Ladder, Door		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
34	945116		Nameplate		Appelez-nous	-
35	991259		Tape Strip		Appelez-nous	-
36	1108789		Shelf, Door Cantilever		Appelez-nous	-
37	520747		Tray, Butter		Appelez-nous	-
38	WP1104787		Shim, Door Closer Cam   (Replaces: 1104787)				$ 7.96
