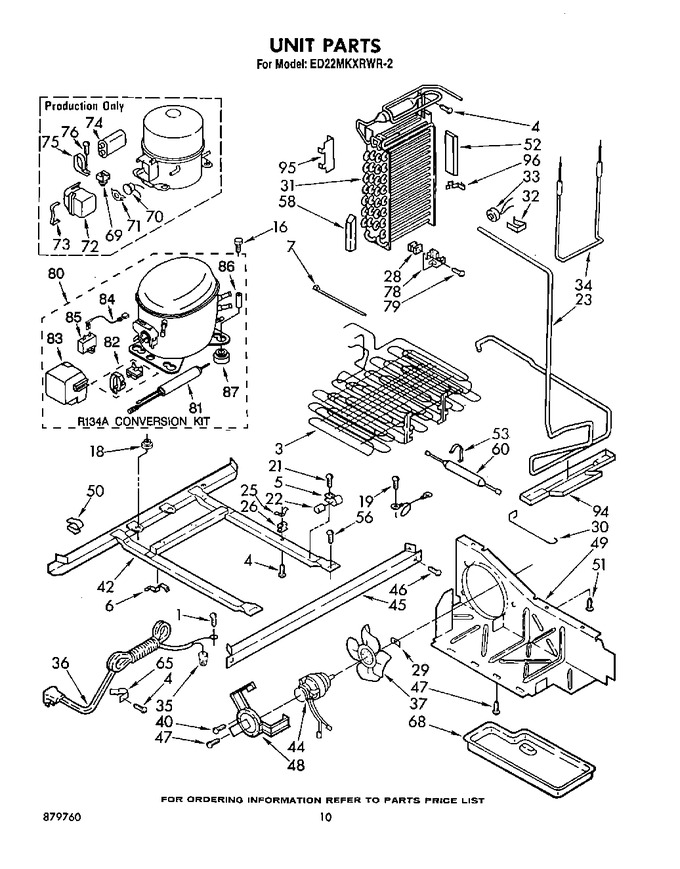

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488474		Screw, Ground		Appelez-nous	-
3	943480		Condenser & Precooler		Appelez-nous	-
4	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	851095		Strap		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
18	876811		Grommet (4)   (Replaces: 1108038)				$ 7.79
19	303776		Screw   (Replaces: 488879)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	1100809		Exchanger, Heat		Appelez-nous	-
25	548738		Clamp (4)		Appelez-nous	-
26	943447		Grommet (4)		Appelez-nous	-
28	944454		Grommet		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	1101078		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Bimetal, Defrost (alternate)   (Replaces: 934425)				$ 108.99
33	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
34	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
35	227991		Wire Connector		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
42	945463		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: 946539)			Immediately	$ 88.15
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	850391		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
51	488978		Screw, 8-15 X 3/8		Appelez-nous	-
52	849335		Baffle, Air		Appelez-nous	-
53	548508		Clamp, Drier		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	652985		Baffle, Air Evaporator (2)		Appelez-nous	-
60	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
65	549193		Clamp				$ 14.06
68	849331		Tray, Evaporator		Appelez-nous	-
69	945535		Relay		Appelez-nous	-
70	1101187		Overload		Appelez-nous	-
71	943494		Overload Spring		Appelez-nous	-
72	943496		Terminal Cover		Appelez-nous	-
73	943497		Terminal Cover Strap		Appelez-nous	-
74	1101183		Running Capacitor		Appelez-nous	-
75	1101184		Clamp, Capacitor		Appelez-nous	-
76	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
78	842436		Support, Evaporator		Appelez-nous	-
79	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
80	4388009		Compressor (includes Items 81, 82, 83, 84, 85, 86, & 87) Also Order		Appelez-nous	-
80	876765		Tube Kit			Immediately	$ 90.65
81	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
82	W11239930		Overload/relay Asy.   (Replaces: 4387871)				$ 156.49
83	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
84	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
85	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
86	4387559		Sleeve		Appelez-nous	-
87	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
94	945572		Pan, Drip		Appelez-nous	-
95	850568		Heat Shield		Appelez-nous	-
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92
96	549419		Clamp, Heater (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
