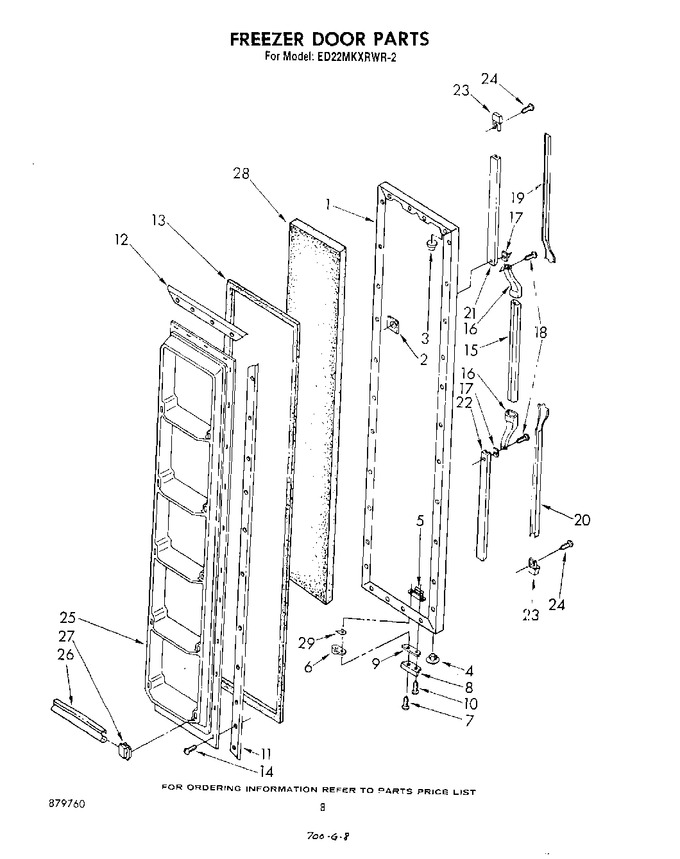

1	1101365		Freezer, Door Panel (toast)		Appelez-nous	-
1	1101366		Freezer Door Panel (platinum) (also Order Item 28)		Appelez-nous	-
1	941254		Freezer, Door Panel (white)		Appelez-nous	-
1	941256		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	941258		Freezer, Door Panel (almond)		Appelez-nous	-
2	941242		Screw Anchor		Appelez-nous	-
3	509929		Cap, Hinge Sleeve		Appelez-nous	-
4	1100196		Hole Plug (toast)		Appelez-nous	-
4	534927		Hole Plug (white)		Appelez-nous	-
4	989197		Hole Plug (almond)		Appelez-nous	-
4	989879		Hole Plug (golden Harvest)		Appelez-nous	-
4	1100197		Hole Plug (platinum)		Appelez-nous	-
5	988402		Tap Plate		Appelez-nous	-
6	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 27.36
7	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
8	988420		Bracket, Door Stop		Appelez-nous	-
9	988421		Shim		Appelez-nous	-
10	488549		Screw, 8 X 5/8		Appelez-nous	-
10	488930		Screw (repair)		Appelez-nous	-
11	836120		Retainer Side, Gasket		Appelez-nous	-
12	836122		Retainer, Top & Bottom Gasket		Appelez-nous	-
13	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 351.08
14	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
14	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
15	1111552		Handle Center (for Platinum Model Only)		Appelez-nous	-
15	1108897		Handle, Center		Appelez-nous	-
16	935103		Center End Cap (2)		Appelez-nous	-
17	935075		Shim, Handle Center		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
19	1108899		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
19	1108898		Insert, Handle (top) (white)		Appelez-nous	-
19	1108900		Insert, Handle (top) (almond)		Appelez-nous	-
19	1108901		Insert, Handle (top) (toast)		Appelez-nous	-
19	1108902		Insert, Handle (top) (platinum)		Appelez-nous	-
20	1108904		Insert, Handle (bottom) (golden Harvest)		Appelez-nous	-
20	1108907		Insert, Handle (bottom) (platinum)		Appelez-nous	-
20	1108906		Insert, Handle (bottom) (toast)		Appelez-nous	-
20	1108905		Insert, Handle (bottom) (almond)		Appelez-nous	-
20	1108903		Insert, Handle (bottom) (white)		Appelez-nous	-
21	941260		Retainer Insert		Appelez-nous	-
22	941262		Retainer Insert		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	489075		Screw, 10-32 X 5/8		Appelez-nous	-
25	482664		Interior Door Panel		Appelez-nous	-
26	1108909		Trim, Door Shelf		Appelez-nous	-
27	839904		Retainer, Door Trim				$ 5.65
28	876029		Foam Isulation		Appelez-nous	-
29	WP1104787		Shim, Door Closer Cam   (Replaces: 1104787)				$ 7.58
