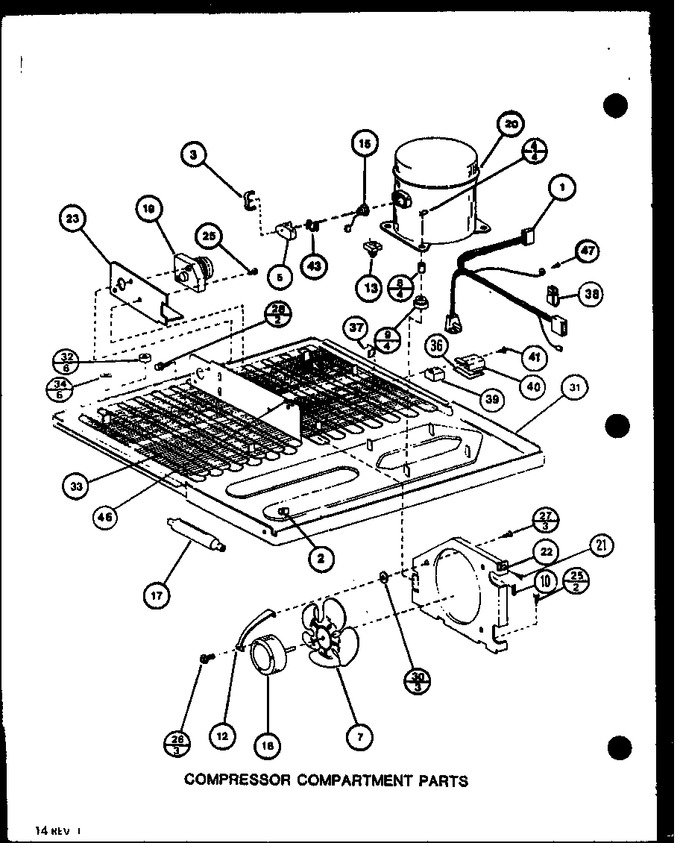

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Page 3


04 - Page 4


05 - Page 5


06 - Rear Components


07 - Ref Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7708401		Harness Mc		Appelez-nous	-
1	M0110508		Clip		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
4	B8352901		Clip Comp		Appelez-nous	-
5	C8960801		Term Cover		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)			Immediately	$ 7.55
10	B5759604		Gasket		Appelez-nous	-
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	C8931503		Relay		Appelez-nous	-
15	C8906206		Overload		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	R0168027		Kit, Defrost Timer   (Replaces: D7790402)			Immediately	$ 159.86
20	30-FF10HBK1		Compressor Aea1410axa   (Replaces: D7736204)				$ 833.75
21	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7690801		Timer Bracket		Appelez-nous	-
25	M0223803		Screw		Appelez-nous	-
25	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
30	M0500107		Grommet K		Appelez-nous	-
31	D7595410		Base Pan		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
36	A3261703		Grommet Per In.		Appelez-nous	-
37	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
38	M0103901		Clamp		Appelez-nous	-
39	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
40	C8931101		Shield-capacitor		Appelez-nous	-
41	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
43	B8358301		Spring, Overload		Appelez-nous	-
46	A9008301		Felt		Appelez-nous	-
47	M0253916		Screw		Appelez-nous	-
