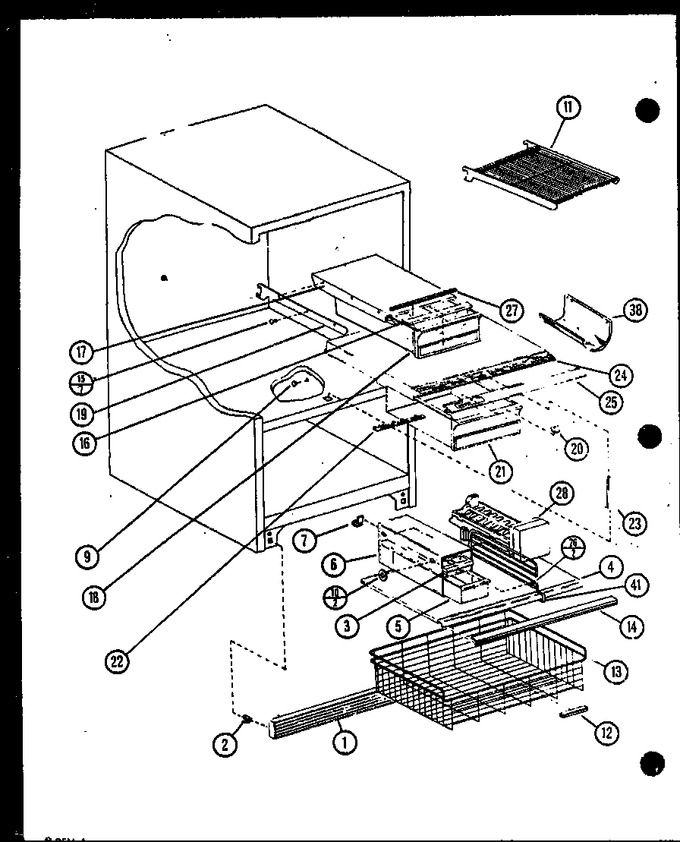

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520503		Grille-toe-b K		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 45.56
4	D7681202		Shelf		Appelez-nous	-
5	D7620011		Ice Bin		Appelez-nous	-
6	D7620107		Rack, Ice Service		Appelez-nous	-
7	B5720301		Clip		Appelez-nous	-
9	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
10	M0270508		Washer		Appelez-nous	-
11	D7654905		Shelf Wire Cont.		Appelez-nous	-
12	B0571806		Handle Basket		Appelez-nous	-
13	D7677401		Basket Frz		Appelez-nous	-
14	C8832510		Trim Shelf		Appelez-nous	-
15	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
16	C8913507		Trim, Front Shelf		Appelez-nous	-
17	D7698205		Top M.k		Appelez-nous	-
18	D7710514		Deli Drawer		Appelez-nous	-
19	D7862940		Blank Side Rail		Appelez-nous	-
19	D7862912		Blank Side Rail		Appelez-nous	-
20	C8908301		Knob Humidity A-k		Appelez-nous	-
21	D7581023		Pan, Crisper		Appelez-nous	-
22	D7587705		Slide Humidity		Appelez-nous	-
23	D7602202		Crisper Support Post		Appelez-nous	-
24	D7616505		Top,crisper A-k		Appelez-nous	-
25	D7616617		Trim		Appelez-nous	-
26	M0219559		Screw		Appelez-nous	-
27	D7718401		Seal Meat Pan		Appelez-nous	-
28	Y00000000		See Note Ice Maker		Appelez-nous	-
NI	R0179090		Crisper Top Assy		Appelez-nous	-
