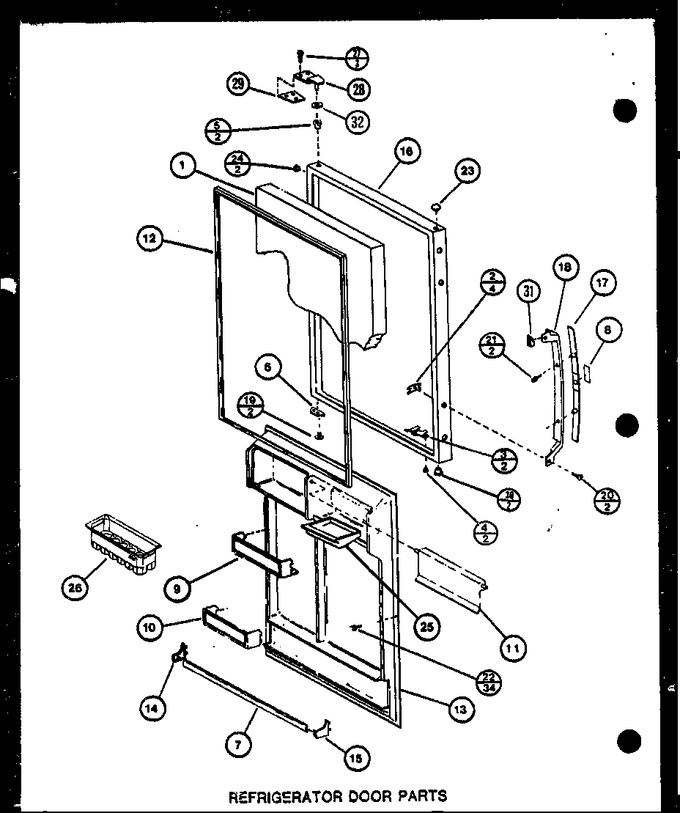

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5683516		Insulation, Bat		Appelez-nous	-
2	B8361401		Nut		Appelez-nous	-
3	B8363501		Nut		Appelez-nous	-
4	M0203931		Screw, Tf		Appelez-nous	-
5	C3652901		Bushing, Hinge Pin		Appelez-nous	-
6	C8894802		Door Stop		Appelez-nous	-
7	C8907221		Retainer Pkg		Appelez-nous	-
8	C8945003		Nameplate		Appelez-nous	-
9	D7565408		Door Shelf		Appelez-nous	-
10	D7574508		Retainer Cant.		Appelez-nous	-
11	D7604417		Dairy Door		Appelez-nous	-
12	D7605116		Gasket, Door		Appelez-nous	-
13	D7677202		Inner Dr Panel, Ref		Appelez-nous	-
14	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
15	D7681804		Cap, Pkg Retainer End		Appelez-nous	-
16	D7728308		Ref Dr Foamd As Cfc11		Appelez-nous	-
16	D7728304		Ref Door, White		Appelez-nous	-
17	D7694707		Insert K		Appelez-nous	-
18	D7694803		Handle				$ 125.50
19	M0203458		Screw		Appelez-nous	-
20	M0203858		Screw		Appelez-nous	-
21	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
22	M0219717		Screw		Appelez-nous	-
23	M0310601		Plug		Appelez-nous	-
23	M0310606		Plug		Appelez-nous	-
24	M0311301		Plug Button		Appelez-nous	-
24	M0311303		Plug Button		Appelez-nous	-
25	D3799802		Butter Tray		Appelez-nous	-
26	D7695606		Egg Bucket		Appelez-nous	-
27	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
28	B5744301		Hinge		Appelez-nous	-
29	B8389001		Shim, Top Hinge		Appelez-nous	-
29	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
29	B8389002		Shim Top Hinge		Appelez-nous	-
30	C8852202		Bearing, Hinge		Appelez-nous	-
31	B8372002		Spacer, Handle		Appelez-nous	-
31	B8372001		Spacer, Handle		Appelez-nous	-
32	M0274049		Washer		Appelez-nous	-
