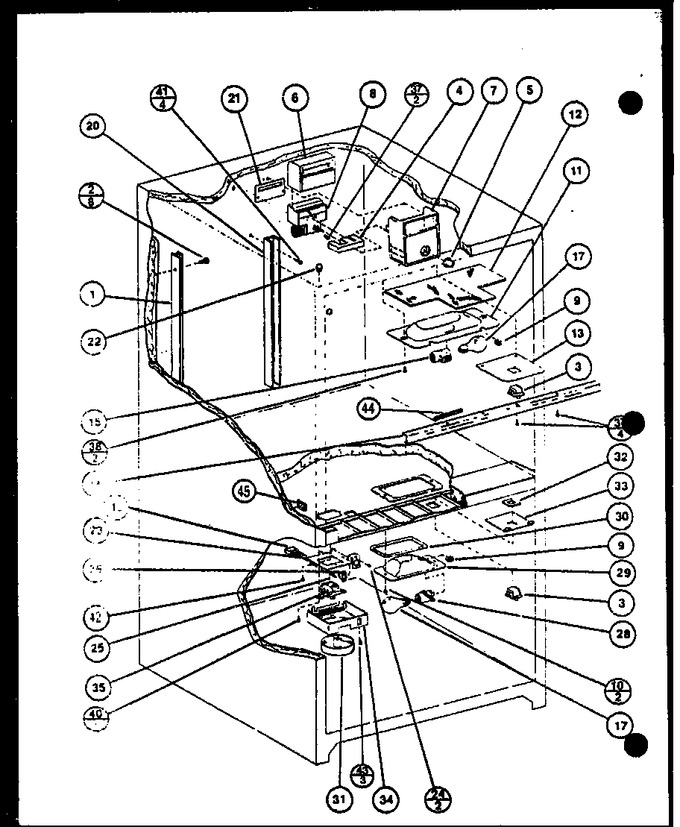

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7599103 | Ladder Side |
|
- | |||||
| 2 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 3 | W11384469 | Switch-nc Light (Replaces: C3680307) |
|
Immediately | $ 39.09 | ||||
| 4 | C8902601 | Insert, Control |
|
- | |||||
| 5 | D7009802 | Knob |
|
- | |||||
| 6 | D7687701 | Insul. Damper |
|
- | |||||
| 7 | D7687508 | Cover Ref Control |
|
- | |||||
| 8 | D7547404 | Damper Control Kit |
|
- | |||||
| 9 | B5733302 | Clip, Ground |
|
- | |||||
| 10 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 11 | D7716403 | Housing-ref Light |
|
- | |||||
| 12 | C8778301 | Insulation |
|
- | |||||
| 13 | D7297602 | Cover, Light Sw |
|
- | |||||
| 14 | D7288109 | Shield, Light |
|
- | |||||
| 15 | D7808602 | Socket, Dual Lamp |
|
- | |||||
| 17 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 18 | B8366001 | Harness Heater |
|
- | |||||
| 20 | D7599001 | Ladder Center |
|
- | |||||
| 21 | B8345401 | Gasket, Damper |
|
- | |||||
| 22 | M0310716 | Plug |
|
- | |||||
| 22 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 23 | C8943301 | Bracket Control |
|
- | |||||
| 24 | M0010215 | Pop Rivet |
|
- | |||||
| 25 | M0305301 | Diode |
|
- | |||||
| 26 | M0341202 | Switch |
|
- | |||||
| 28 | D7714402 | Socket-light |
|
- | |||||
| 29 | C8730101 | Shield, Light |
|
- | |||||
| 30 | B5759607 | Gasket |
|
- | |||||
| 31 | D7689901 | Knob, Control |
|
- | |||||
| 32 | B8314801 | Gasket |
|
- | |||||
| 33 | C8940401 | Barrier Lt. S.w. |
|
- | |||||
| 34 | D7878806 | Cover, Temp. Control |
|
- | |||||
| 35 | C8946701 | Control Temp |
|
- | |||||
| 37 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 38 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 40 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 41 | M0230923 | Screw |
|
- | |||||
| 42 | M0253916 | Screw |
|
- | |||||
| 43 | M0216531 | Screw |
|
- | |||||
| 44 | A3030328 | Gasket (1= 1ft.) |
|
- | |||||
| 45 | B5759618 | Gasket Air Block |
|
- |
