Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10538401 Harness, Liner Appelez-nous -
2 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

3 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

4 B8386610 Gasket Appelez-nous -
5 10485410 Cover, Evap Appelez-nous -
6 WP10442411 Thermostat, Defrost   (Replaces: 10442402) In-Stock Immediately $ 44.02

7 WP10428409 Heater, Evap   (Replaces: 10428409) Special Order $ 158.41

8 A4539607 Pop Rivet Appelez-nous -
9 R0170059 Assy,low Side Appelez-nous -
10 A4539619 Pop Rivet Appelez-nous -
11 10427716 Shield, Evap Appelez-nous -
12 A3189320 Gasket, Foam Appelez-nous -
13 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

14 10486102 Tray, Drip Appelez-nous -
15 10485302 Brkt, Ctr. Hinge Appelez-nous -
16 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

17 10519101 Block, Evap (r) Appelez-nous -
18 10485212 Mull, L. Center-pnt Appelez-nous -
19 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

20 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

21 10656001 Brk`t-mtr Mt/lw Appelez-nous -
22 10654206 Motor, Evap Fan Appelez-nous -
23 R0000199 Fan-evap/5.250   (Replaces: 10890101) Special Order $ 166.01

24 10656101 Brkt Mtr Appelez-nous -
25 M0310305 Plug, Button (wht) Appelez-nous -
26 A3030353 Gasket Appelez-nous -
27 10638601 Duct, Return Air Appelez-nous -
28 10623002 Clip, Evaporator Special Order $ 12.11

29 M0310730 Plug Button (almond) Appelez-nous -
30 D7874403 Cover-fl Tb/plug Appelez-nous -
31 10952501 Cover, Fan Shroud Appelez-nous -
32 10954102 Shroud, Evap Fan Appelez-nous -
33 M0580007 Grommet, Screw Appelez-nous -
34 B8386609 Gasket Appelez-nous -
NI WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

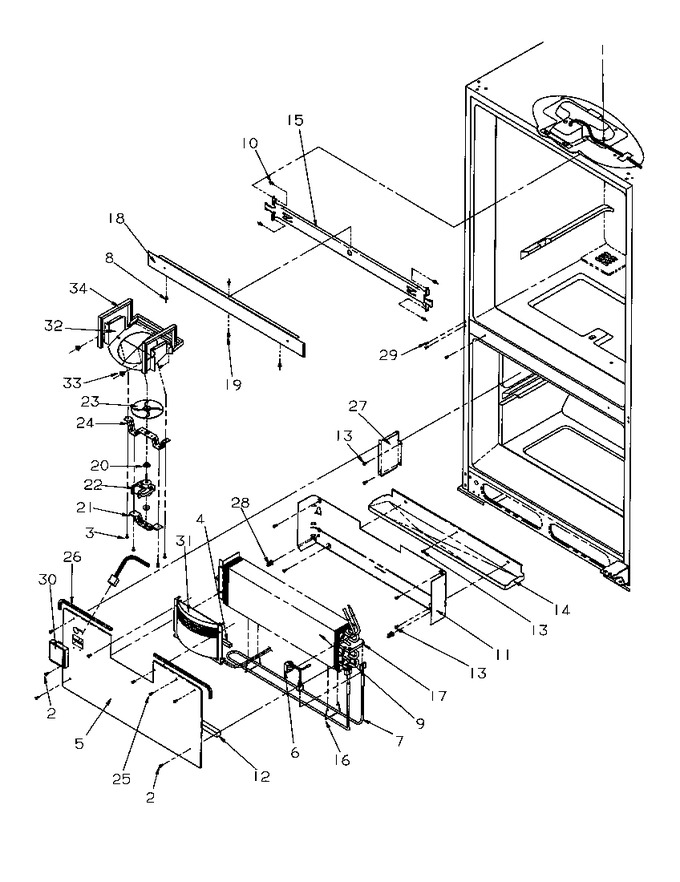

Diagram for BR22S6L (BOM: P1196703W L)
