Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10932302L Assy Frz Door Fm Appelez-nous -
2 10183971 Trim Door Shelf Appelez-nous -
3 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

4 WP12550116Q Gasket,fz Dr(white)   (Replaces: 10456810) In-Stock Immediately $ 122.85

5 10513601 Assy, Liner Frz Dr (bm) Appelez-nous -
6 10462201 Assy, Liner Frz Dr (bm) Appelez-nous -
7 10903502 Handle-l Soft Fz Appelez-nous -
8 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

9 10419004 Retainer, Ref Door Appelez-nous -
10 10825302 Assy,hinge B-btm Appelez-nous -
11 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.62

12 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

13 10447904 Shim Hinge Appelez-nous -
13 10447903 Shim, Btm Hinge Appelez-nous -
14 10433511 Hinge-center Appelez-nous -
15 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.68

16 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

17 M0310308 Plug, Button (wht) Appelez-nous -
18 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

19 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72

20 M0219730 Screw Special Order $ 7.65

21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

22 10447102 Stop, Door Appelez-nous -
23 10562206 Shim, Ctr. Hinge Appelez-nous -
23 10562204 Kit, Ctr Hinge Shim Appelez-nous -
23 10562205 Shim, Ctr. Hinge Appelez-nous -
24 W11177593 Brake, Foot   (Replaces: 10354001) Special Order $ 12.18

25 10202001 Clip, Retainer Appelez-nous -
26 10304107 Extrs, Shelf Appelez-nous -
27 10913702 Cap-l Fz Handle Appelez-nous -
28 10391302 Support, Pin Appelez-nous -
29 10462705 Cover-l Hinge Lw Appelez-nous -
31 876370 Insulation Bott (1= 1ft)   (Replaces: B0523588) Special Order $ 243.14

32 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

NOTE: R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed Sys Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

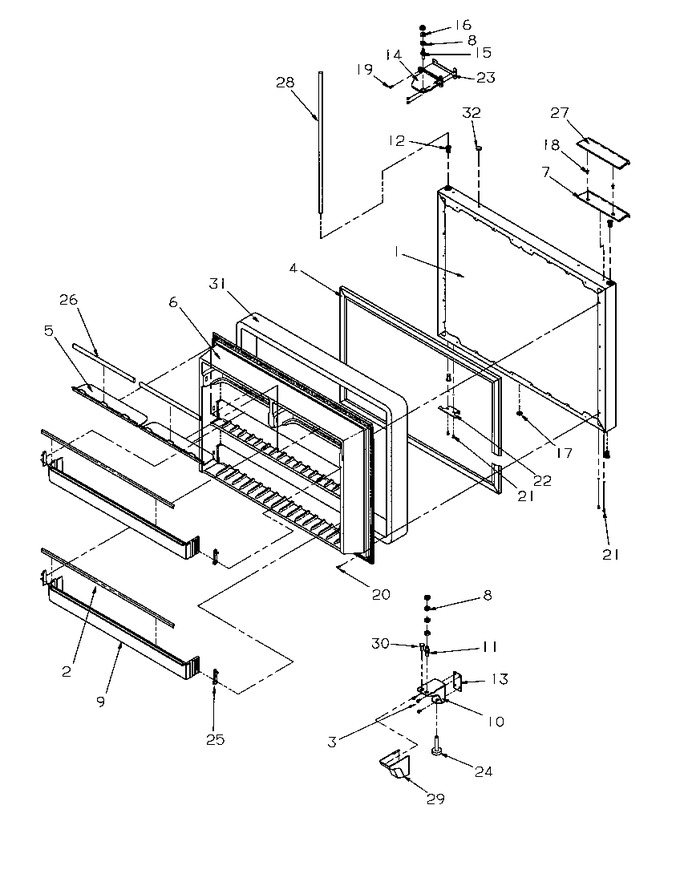

Diagram for BR22S6L (BOM: P1196703W L)
