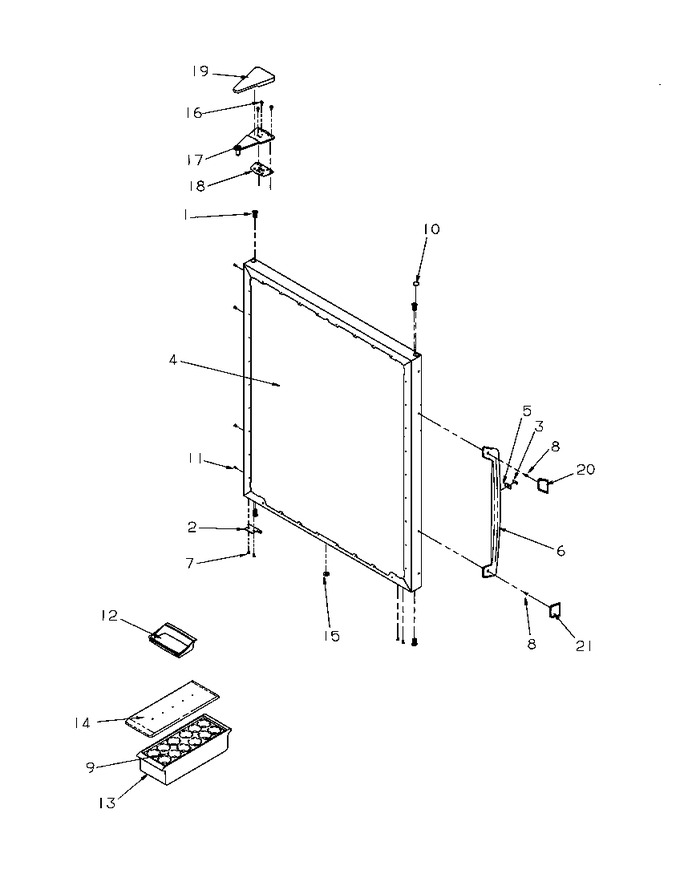

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	10447102		Stop, Door		Appelez-nous	-
3	10926601		Nameplate, Handle		Appelez-nous	-
4	10932202L		Assy Ref. Dr Fm		Appelez-nous	-
5	10992105		Insert, Nameplate		Appelez-nous	-
6	10903302		Kit, Door Handle (almond)		Appelez-nous	-
7	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
8	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
9	10436505		Tray, Egg		Appelez-nous	-
10	10686402		Plug, Button		Appelez-nous	-
11	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
12	10310901		Tray, Butter		Appelez-nous	-
13	10423128		Bin-utility		Appelez-nous	-
14	10436404		Lid, Utility				$ 60.85
15	M0310308		Plug, Button (wht)		Appelez-nous	-
16	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
17	10185105		Hinge, Top		Appelez-nous	-
18	10451302		Shim, Top Hinge				$ 0.63
18	10451303		Shim, Top Hinge				$ 1.08
18	10451301		Shim, Top Hinge				$ 1.08
19	10444806		Cover, Hinge (almond)		Appelez-nous	-
20	10913603		Cap, Door Handle (almond)		Appelez-nous	-
21	10913604		Cap, Door Handle (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
