Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3076901 Plug-button Special Order $ 5.70

2 10567205 Plate-lw Hng Tap Appelez-nous -
3 10513302 Tube, Drain Appelez-nous -
4 WP10450603 Roller   (Replaces: 10450602) Special Order $ 7.88

5 M0204338 Screw, Mach Appelez-nous -
6 10514801 Bracket, Roller Appelez-nous -
7 M0286708 Nut, Speed Special Order $ 45.57

8 M1205302 Rivet Special Order $ 5.85

9 M0102303 Clamp Appelez-nous -
10 M0227217 Screw, Sm Appelez-nous -
11 10987513 Insulation Appelez-nous -
11 10987514 Insulation Appelez-nous -
12 10450701 Roller, Rear Special Order $ 28.91

13 10450901 Axle, Roller Appelez-nous -
14 M0260242 Screw, Tf Appelez-nous -
15 W11573574 Screw, Sm   (Replaces: M0211031) In-Stock Immediately $ 14.02

16 10427204 Housing-roller Appelez-nous -
17 10427112 Brace Appelez-nous -
18 10567206 Plate-lw Hng Tap Appelez-nous -
19 M0310303 Kit, Plug Button Appelez-nous -
20 12078001 Insul-mach Slope Appelez-nous -
21 12077901 Insul-mach Top Appelez-nous -
NI 10476101 Assy, Roller Brkt Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

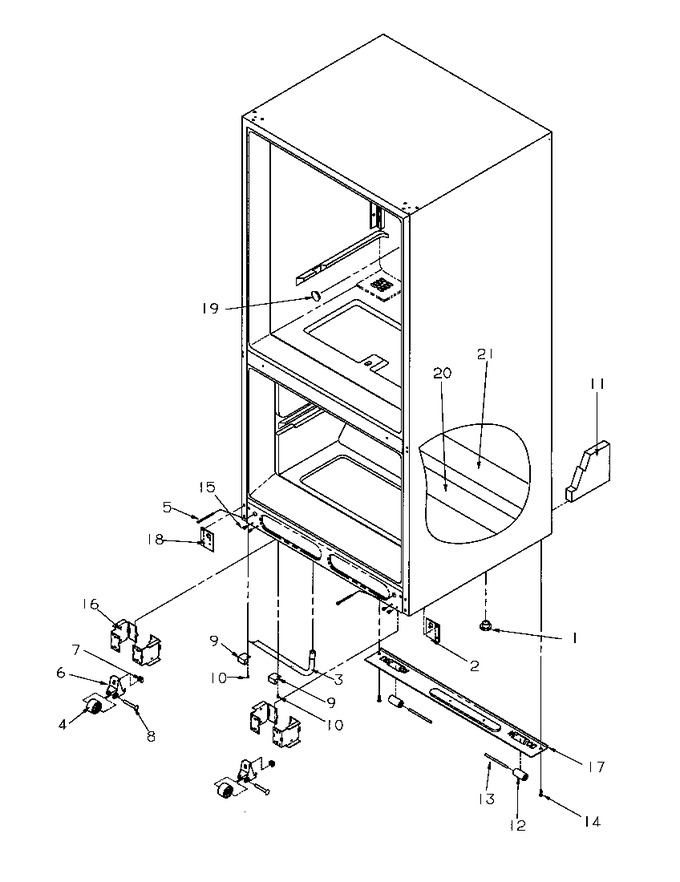

Diagram for BR22S6L (BOM: P1196703W L)
