SELECT A DIAGRAM

01 - Bottom Hinge And Roller Assy


02 - Cabinet Back


03 - Condenser Assy/high Voltage Box


04 - Controls/shields/hinges/trim


05 - Door Assemblies


06 - Evap Area


07 - Fz Shelf/deli/crisper Assemblies


08 - Ice Maker Assy And Parts


09 - Machine Compartment Assy


10 - Shelf Ladders/light Assemblies


11 - Shelving


12 - Trim & Accessories

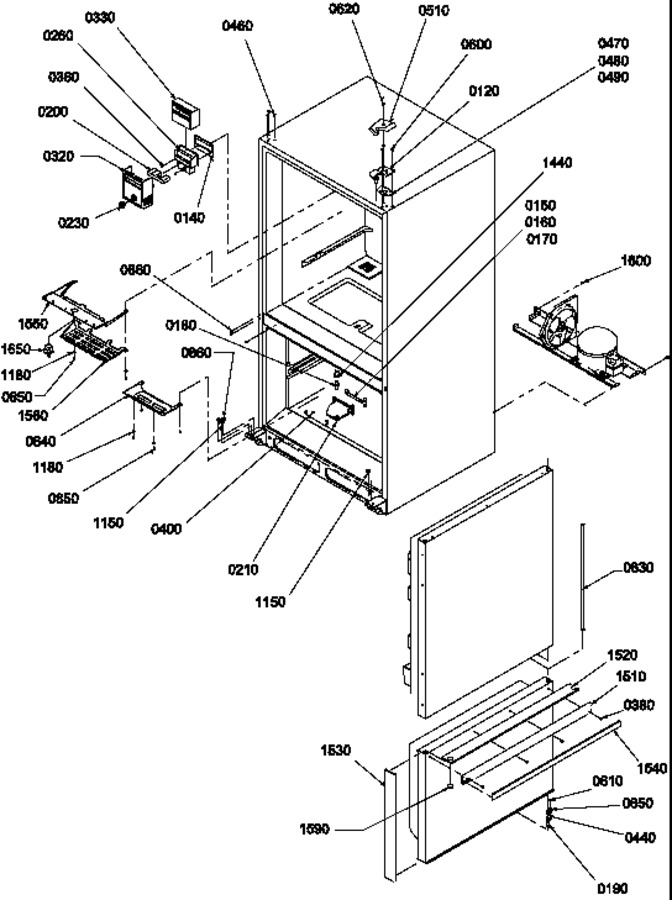

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
120	12077001		Top Hng-bk E Ct		Appelez-nous	-
140	B8345401		Gasket, Damper		Appelez-nous	-
144	12028501		Closure, Door (wht)				$ 6.67
155	12056201		Shield, Ref Light Sw		Appelez-nous	-
156	12056301		Cover, Ref Light		Appelez-nous	-
160	10562205		Shim, Ctr. Hinge		Appelez-nous	-
165	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 39.09
170	10562206		Shim, Ctr. Hinge		Appelez-nous	-
180	10351002		Pin, Hinge (ctr)		Appelez-nous	-
190	10561602		Pin, Door Hinge		Appelez-nous	-
200	C8902601		Insert, Control		Appelez-nous	-
210	12050601		Hinge-bright Ctr		Appelez-nous	-
230	D7795830		Knob-per Control		Appelez-nous	-
260	D7547409		Control-damper		Appelez-nous	-
320	12045401		Cover-ref Cont		Appelez-nous	-
330	12060101		Insul, Damper		Appelez-nous	-
440	Y12060001		Shim-w Dr Closure		Appelez-nous	-
470	10451301		Shim, Top Hinge				$ 1.08
480	10451302		Shim, Top Hinge				$ 0.63
490	10451303		Shim, Top Hinge				$ 1.08
510	12076303		Cover, L Hinge		Appelez-nous	-
610	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
630	10391302		Support, Pin		Appelez-nous	-
650	12113301		Closure, Door (wht)		Appelez-nous	-
840	10493302		Cover, Frz Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
