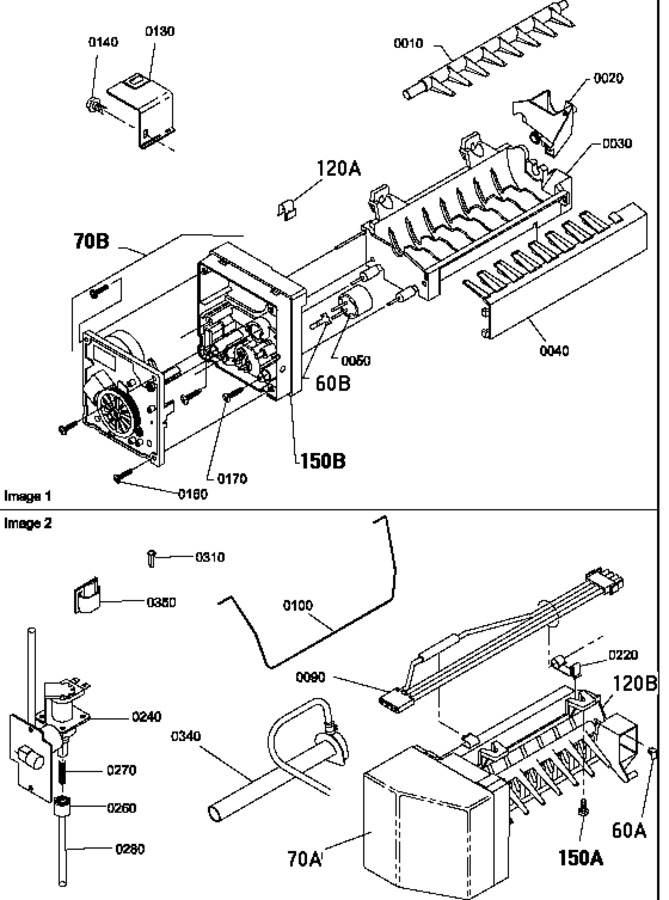

BRF20TLW (BOM: P1199201W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
10	WP627843	Ejector (Replaces: R0183119)			$ 87.78
20	WP628356	Cup, Water Fill/bearing (Replaces: R0156839)			$ 53.75
30	D7824706Q	Assy, Mold & Heater (Replaces: R0156669)		Immediately	$ 167.35
40	WP2182124	Stripper, Ice (Replaces: R0183120)			$ 90.35
50	WP627985	N/a See Notes-thermostat (Replaces: R0161060)			$ 114.64
60	B5720301	Clip	Appelez-nous	-
60	WP2315522	Retainer (Replaces: R0191094)			$ 11.60
70	WPW10289690	Cover, Ice Maker (Replaces: 10519801)		Immediately	$ 8.82
70	W10190935	Module & Mtr Assy,120v/60hz (Replaces: R0167203)		Immediately	$ 110.07
90	WPD7813010	Harness, Ice Maker Mod (Replaces: D7813004)		Immediately	$ 73.97
100	WP67004028	Arm, I.m. Shut-off (Replaces: 10884401)		Immediately	$ 95.92
120	WP628379	Clip, Thermal Fuse (Replaces: 10319801)			$ 11.10
120	D7824706Q	Ice Maker (Replaces: D7824703)		Immediately	$ 167.35
130	B8391802	Bracket, I/m	Appelez-nous	-
140	67006425	Screw-sm No.8-1/2lg (Replaces: M0211017)		Immediately	$ 7.30
150	WP2195914	Support (Replaces: R0183121)			$ 109.80
220	10526701	Clamp, Wire	Appelez-nous	-
240	W10833899	Kit, Water Valve (Replaces: 10524606)		Immediately	$ 253.55
250	WP627018	Nut, Sleeve (Replaces: M0753001)			$ 11.51
270	A1055101	Spring, Antikink	Appelez-nous	-
280	B5705325	Tubing, Plastic	Appelez-nous	-
310	WPA3223101	Insert, Plastic Tube (Replaces: A3223101)		Immediately	$ 8.21
340	W11176463	Elbow, Fill Tube (Replaces: 10463201)		Immediately	$ 119.86
350	WPM0104106	Clip,cord (Replaces: M0104101)			$ 8.17
NI	10527010	Ic7 Bm Refrig Install/oper Ins	Appelez-nous	-
NI	10834701	Label, Im	Appelez-nous	-
NI	10549601	Label, Caution (ice Maker)	Appelez-nous	-
NI	A3036901	Label Warranty	Appelez-nous	-
NI	M0108001	Clamp, Tube	Appelez-nous	-
NI	A3124301	Plug	Appelez-nous	-
NI	WPM0114003	Clip, Speed (Replaces: M0114003)			$ 11.60
