Diagram # Part Number Description Series Availability Ships Price Add to Cart
10 12024802 Shelf, Party Tray Appelez-nous -
20 12046001 Tray, Party Appelez-nous -
30 12046101 Glide, Party (lt) Appelez-nous -
40 12046102 Glide, Party (rt) Appelez-nous -
40 12081901 Assy, Party Tray Appelez-nous -
60 12095001 Assy, Freezer Shelf Appelez-nous -
90 12079902 Crisp Frame Assy Appelez-nous -
100 12079901 Assy, Ref Deli Appelez-nous -
108 12077401 Shelf, Top Crisper Appelez-nous -
129 12045501 Pan, Ice Appelez-nous -
174 12045201 Sleeve, Mk Appelez-nous -
280 12053501 Basket, Freezer Appelez-nous -
550 10461902 Post-crisp Supp Special Order $ 26.54

910 10508502 Handle-basket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

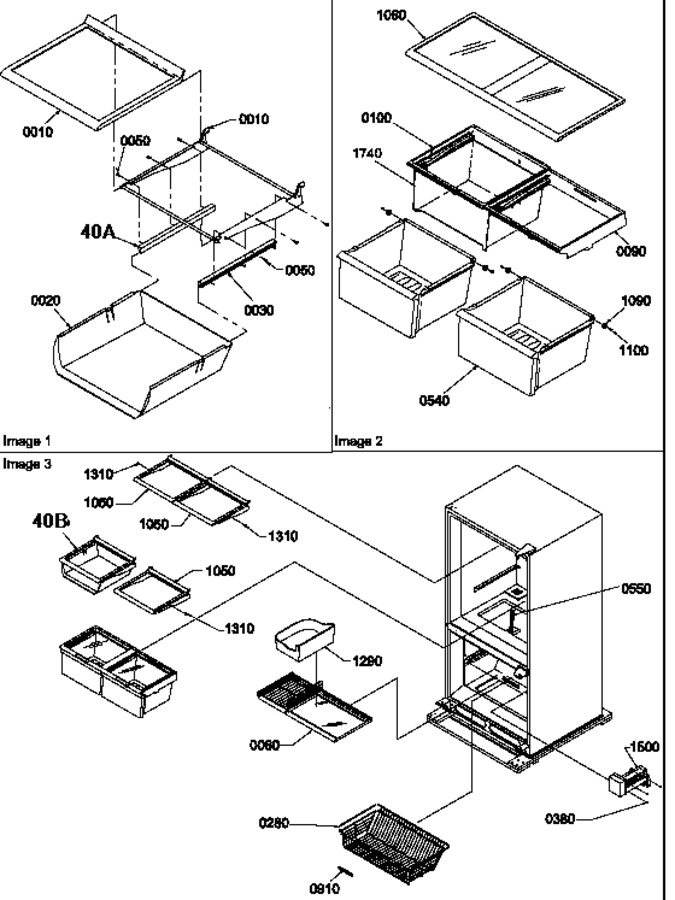

Diagram for BRF20TLW (BOM: P1199201W L)
