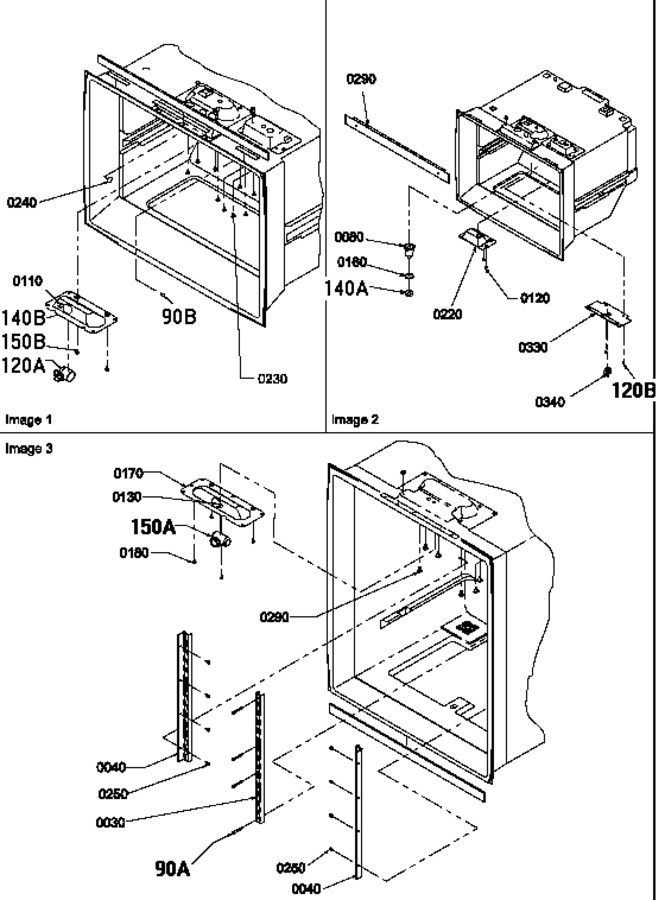

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	D7599002		Ladder, Center		Appelez-nous	-
80	W10815413		Funnel, Drain   (Replaces: D7753902)			Immediately	$ 51.50
110	B5733302		Clip, Ground		Appelez-nous	-
120	C8973404		Socket-light		Appelez-nous	-
130	B5733302		Clip, Ground		Appelez-nous	-
140	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
140	D7760102		Housing Frz Light		Appelez-nous	-
150	10796001		Socket, Dual Lamp		Appelez-nous	-
160	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
170	D7716409		Housing-ref Light		Appelez-nous	-
220	10649702		Housing, Frz. Cont.		Appelez-nous	-
290	Y00000000		See Note Center Mullion -- (not Replaceable)		Appelez-nous	-
330	12056101		Cover, Frz Light Sw		Appelez-nous	-
340	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 39.09
