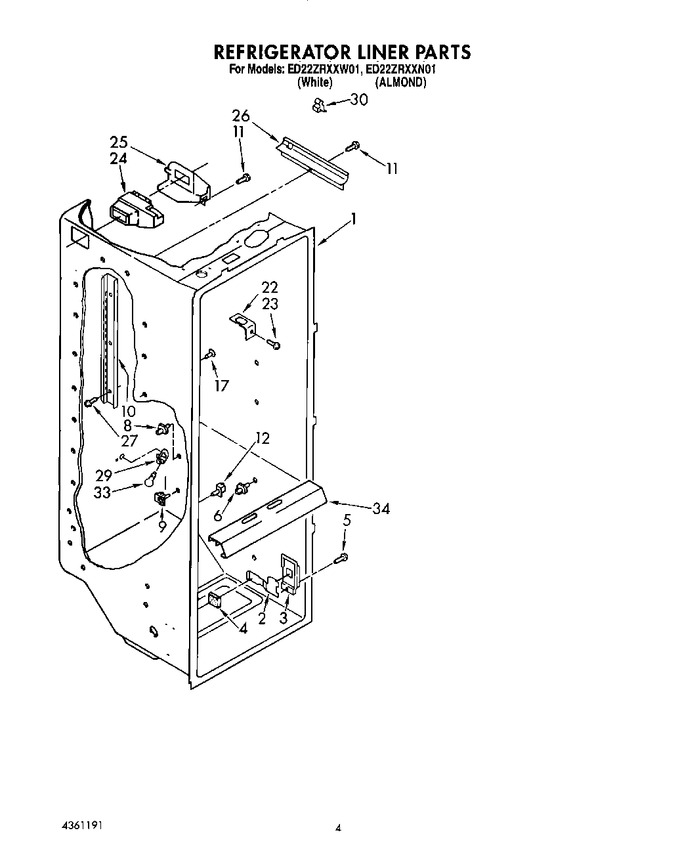

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	WP2149540		Stud (2)   (Replaces: 2149540)				$ 10.96
8	946356		Stud, Rear (6)		Appelez-nous	-
9	1106982		Stud (4)		Appelez-nous	-
10	1108433		Ladder, Shelf		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
12	4388538		Stud (2)   (Replaces: 2147997)			Immediately	$ 32.85
17	946355		Support, Stud (24)		Appelez-nous	-
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2157403)			Immediately	$ 104.77
25	2152019		Cover, Air Diffuser				$ 90.33
26	2150331		Cover, Conduit				$ 25.62
27	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
29	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1114624		Light Lens		Appelez-nous	-
