Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 1115380 Slide, Ice Door Appelez-nous -
3 2148696 Door, Ice Compartment Appelez-nous -
4 1108436 Evaporator, Support Appelez-nous -
5 W11233072 Screw, 8 X 1/2   (Replaces: 489355) In-Stock Immediately $ 14.02

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

7 1115317 Support, Stud (4) Appelez-nous -
8 1114609 Shelf, F.c. Appelez-nous -
9 1110782 Trim Shelf Appelez-nous -
11 2148194 Bin, Freezer Appelez-nous -
14 1114607 Wiring Cover Appelez-nous -
15 WP488729 Screw   (Replaces: 489176) In-Stock Immediately $ 7.79

16 942768 Fitting, Drain Appelez-nous -
17 1115383 Slide, Freezer Bin Appelez-nous -
19 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 38.18

20 487979 Screw Appelez-nous -
21 4388538 Stud (8)   (Replaces: 1110718) In-Stock Immediately $ 31.34


    View Diagram in Separate Window     Print Icon   Print Part List

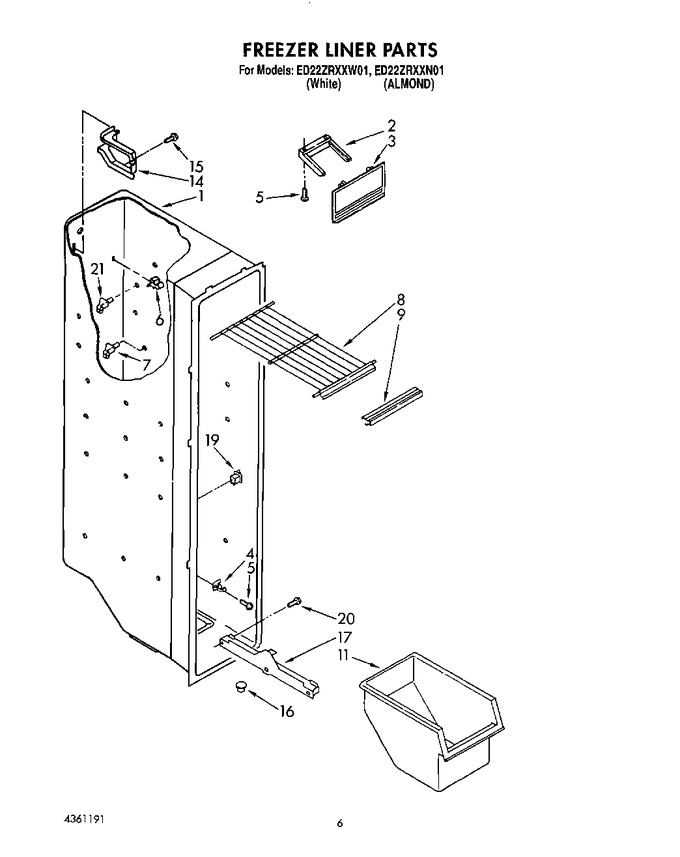

Diagram for ED22ZRXXN01
