SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door

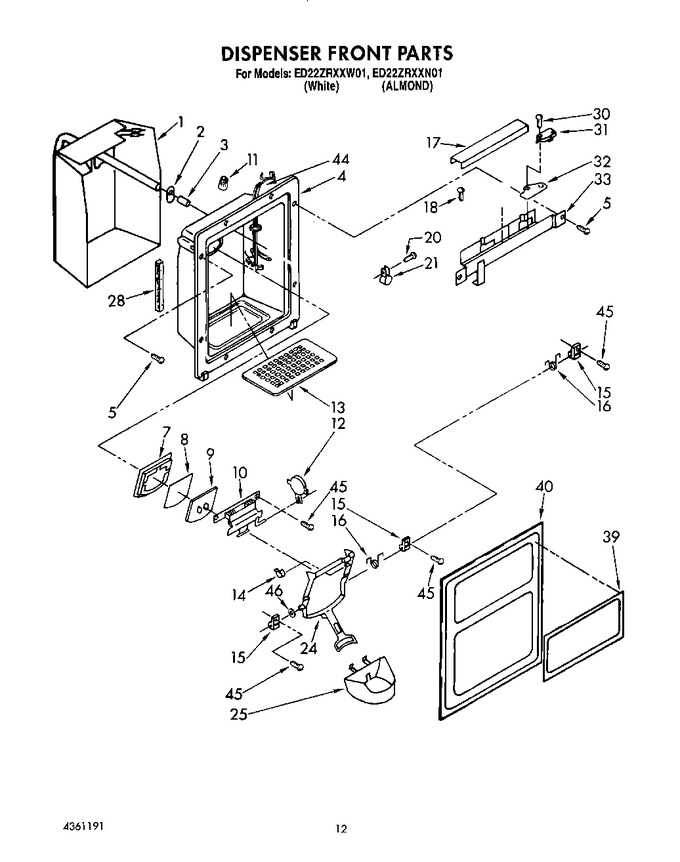

09 - Dispenser Front


10 - Unit


11 - Airflow


12 - Control


13 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2154789		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
3	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
4	1116820		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw 8 X 5/8 (10)   (Replaces: 488687)			Immediately	$ 14.06
7	983691		Gasket, Door				$ 6.61
8	987121		Shield, Ice Door				$ 5.91
9	983690		Door, Ice				$ 11.13
10	938669		Door Mechanism Assembly		Appelez-nous	-
11	227991		Wire Connector		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 213.07
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 10.88
20	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
21	WP488878		Clamp 8 X 3/8 (2)   (Replaces: 488878)				$ 11.60
24	1127421		Lever, Ice Dispenser		Appelez-nous	-
25	1119035		Guide, Ice		Appelez-nous	-
28	482672		Seal		Appelez-nous	-
30	489155		Screw, 4-40 X 3/4 (4)		Appelez-nous	-
31	814037		Switch (2)   (Replaces: 313125)				$ 90.36
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	1116811		Bracket, Control		Appelez-nous	-
39	2148685		Plaque, Front Cover		Appelez-nous	-
40	2148684		Front Cover, Housing (includes Item 39)		Appelez-nous	-
44	1118374		Wiring Assembly, Door		Appelez-nous	-
45	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 7.84
46	488316		Washer (repair)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
