Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1115276 Refrigerator Door (almond (also Order Item 18)) Appelez-nous -
1 1115273 Refrigerator Door (white) Appelez-nous -
3 2148218 Door, Compartment Appelez-nous -
4 1110717 Trim, Compartment Door Appelez-nous -
5 WP489399 Screw, 8 X 1/2 (4)   (Replaces: 489375) Special Order $ 6.95

6 2148180 Trim, Door Shelf Appelez-nous -
7 1119361 Insert, Handle (white) Appelez-nous -
7 1119363 Insert, Handle (almond) Appelez-nous -
8 2188404A Door Gasket, Magnetic   (Replaces: 2148270) Special Order $ 269.26

9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1118417 Handle, Center Appelez-nous -
11 941242 Screw Anchor (2) Appelez-nous -
12 1119359 End Cap, Center Handle Appelez-nous -
13 935075 Shim Appelez-nous -
15 991259 Tape Strip Appelez-nous -
16 1119369 Insert, Handle (almond) Appelez-nous -
16 1119367 Insert, Handle (white) Appelez-nous -
17 1124961 Panel, Interior Door Appelez-nous -
18 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
19 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 7.67

19 WP489069 Screw, 7 X 1/2 (30)   (Replaces: 489101) In-Stock Immediately $ 7.86

20 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 27.36

21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58

22 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 7.86

23 1115906 Bracket, Door Stop Appelez-nous -
24 988421 Shim Appelez-nous -
25 1114380 Divider, Shelf Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 1119360 Retainer, Insert (bottom) Appelez-nous -
28 1119366 Retainer, Insert Appelez-nous -
29 2156220 End Cap (2) Appelez-nous -
30 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
32 534927 Hole Plug (2) Appelez-nous -
34 4388286 End Cap   (Replaces: 1124877) Special Order $ 15.33

35 2148181 Trim, Door Shelf Appelez-nous -
36 489022 Screw, 6-20 X 3/8 (4) Appelez-nous -
38 2152266 Door Dike, Handle Side Appelez-nous -
39 1117766 Retainer, Gasket Special Order $ 36.55

40 1118301 Retainer, Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

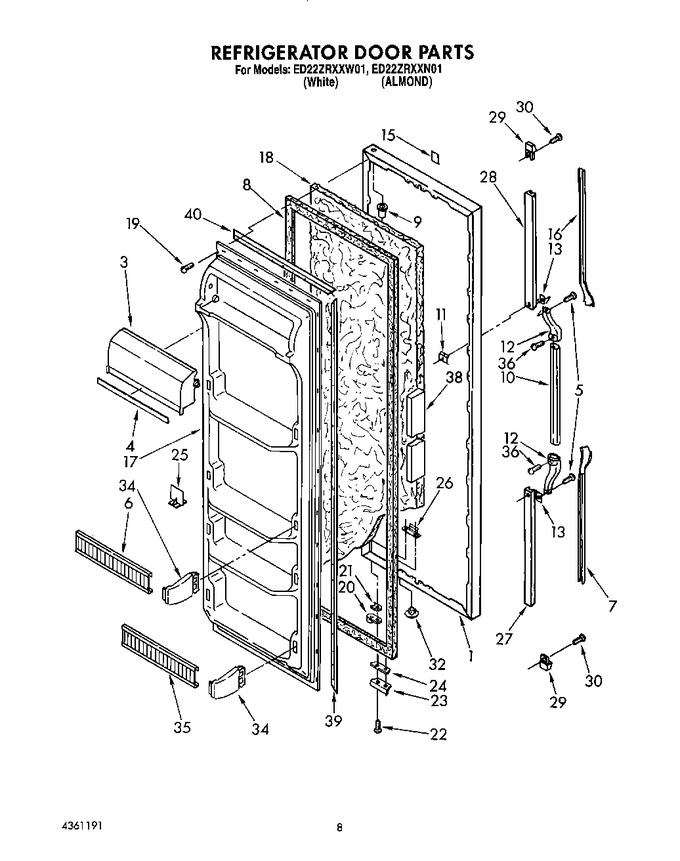

Diagram for ED22ZRXXN01
