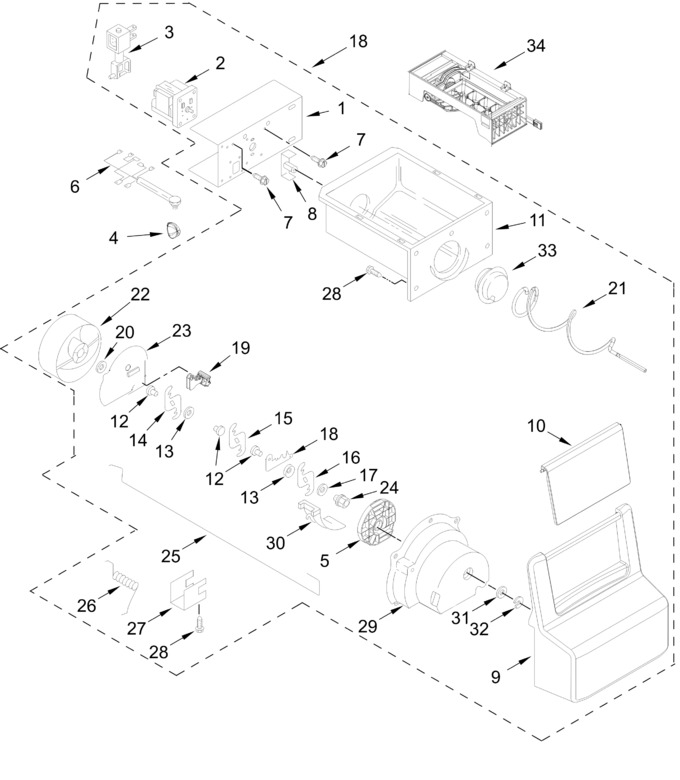

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11715972		Bracket, Motor   (Replaces: W11307589)		Appelez-nous	-
2	W11671282		Motor, Dispenser   (Replaces: W10884561)			Immediately	$ 110.51
3	WP2152713		Solenoid Assembly   (Replaces: 2152713)				$ 238.20
4	W11602886		Light Module, Led   (Replaces: W11549780)				$ 42.63
5	W10138206		Spacer, Crusher Housing		Appelez-nous	-
6	W11676779		Wire Assembly, Ice Dispenser   (Replaces: W11218402)				$ 69.73
7	WP489399		Screw   (Replaces: W10162487)				$ 6.95
8	WPW10169511		Coupling, Motor   (Replaces: W10169511)				$ 23.34
9	W11427433		Cover, Ice Container Front				$ 105.84
10	W11661892		Ice Door   (Replaces: W11351746)				$ 50.28
11	WPW10670845		Container, Ice   (Replaces: W10670845)				$ 189.70
12	W11032812		Spacer, Step		Appelez-nous	-
13	W11032808		Spacer, Flat				$ 10.12
14	W10278731		Blade, Rotary A				$ 86.54
15	W10278732		Blade, Rotary B				$ 86.67
16	W10278733		Blade, Rotary C				$ 86.67
17	489234		Washer, Plain Upper Cam				$ 13.37
18	WPW10558423		Ice Container, Complete   (Replaces: W10558423)				$ 316.51
19	W11823831		Block, Blade   (Replaces: W11789194)		Appelez-nous	-
20	WP2198661		Washer, Top Coupling   (Replaces: 2198661)				$ 10.90
21	WPW10295082		Auger   (Replaces: W10295082)				$ 163.44
22	4388736		Drum   (Replaces: W10698642)				$ 92.35
23	W10852691		Baffle, Floating   (Replaces: W10403781)			Immediately	$ 33.19
24	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.52
25	W11596045		Arm, Control   (Replaces: W10838981)				$ 33.82
26	1119020		Spring, Return				$ 18.22
27	1119021		Clip, Retainer (dispenser Rod)				$ 10.44
28	WP488787		Screw   (Replaces: 488886)				$ 10.58
29	W11794337		Housing, Crusher   (Replaces: W11768513)		Appelez-nous	-
30	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.57
31	489234		Washer, Plain Upper Cam				$ 13.37
32	WP489236		Ring, Retainer   (Replaces: 489236)			Immediately	$ 12.17
33	W10749708		Coupling, Ice Conveyor   (Replaces: W10698668)				$ 26.13
34	W11700250		Icemaker Assembly   (Replaces: W11633658)			Immediately	$ 298.37
